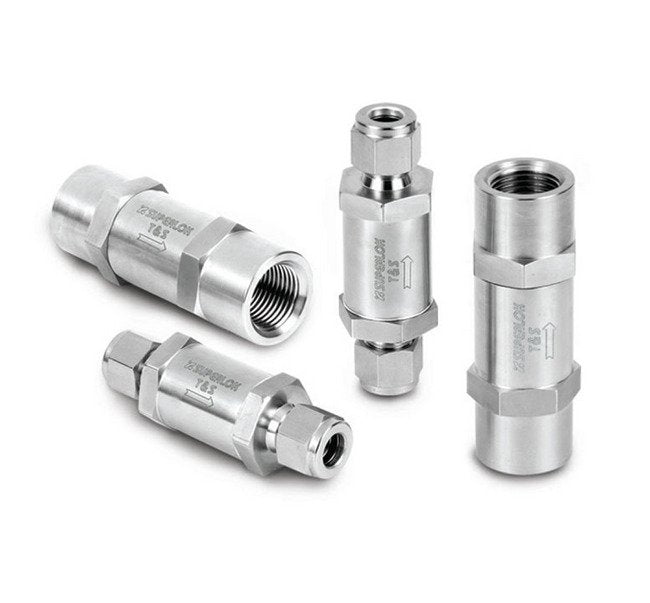

SIF Series 10.4mm Orifice Micron Inline Filter
SIF Series 10.4mm Orifice Micron Inline Filter
SKU:SIF-8c1a5d
Efficiently remove contaminants with the SIF Series 10.4mm Orifice Micron Inline Filter featuring durable construction and reliable performance for diverse applications.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
SIF Series 10.4mm Orifice Micron Inline Filter
$149.99
Quantity: 1
Claim Your Seller Account
SIF Series 10.4mm Orifice Micron Inline Filter
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SIF Series 10.4mm Orifice Micron Inline Filter is a high-grade filtering solution designed for removing system particulate contaminants efficiently. Featuring 1/2 inch SUPERLOK® inlet end connections, this filter is ideal for applications with limited space. With a durable body made from 316 Stainless Steel and Brass, it offers a sintered effective filtration area of 2.0 in². Operating at a maximum pressure of 3000 psi and a wide temperature range from -20 to 900°F, this filter ensures reliable performance in varied conditions. The replaceable filter element and versatile end connections make it adaptable to different setups, catering to the specific needs of institutional and consumer buyers.
Product Specifications
Features Features
Remove system particulate contaminants.Inline filters are for use where space is limited.Replaceable filter element.1/8 to 1/2 in. and 3 to 10mm end connections.
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes. and end connections not listed are available upon request.
Technical Specs Body Material
316 Stainless Steel | Brass

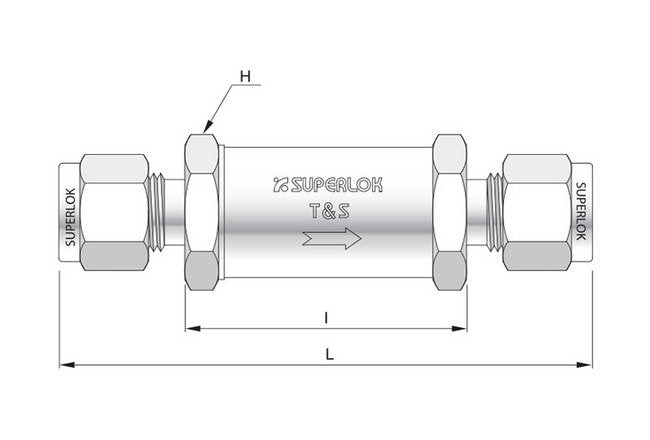

Technical Specs Dimension H
25.4 mm
Technical Specs Dimension I
43.2 mm
Technical Specs Dimension L
86.9 mm
Technical Specs Inlet End Connections
1/2 in. SUPERLOK®
Technical Specs Maximum Operating Pressure At 70 Degree Fahrenhe
3000 psi
Technical Specs Operating Temperature Range With Stainless Steel
-20 to 900 ºF | -28 to 482 ºC
Technical Specs Orifice Size
10.4 mm
Technical Specs Outlet End Connections
1/2 in. SUPERLOK®
Technical Specs Sintered Effective Filtration Area
2.0 in² | 1280 mm²
