SIF Series 2.4mm Micron Inline Filter
SIF Series 2.4mm Micron Inline Filter
SKU:SIF-1c69a3
Ensure precise filtration with the SIF Series 2.4mm Micron Inline Filter. Durable, efficient, and reliable for system contaminant removal.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
SIF Series 2.4mm Micron Inline Filter
$59.99
Quantity: 1
Claim Your Seller Account
SIF Series 2.4mm Micron Inline Filter
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

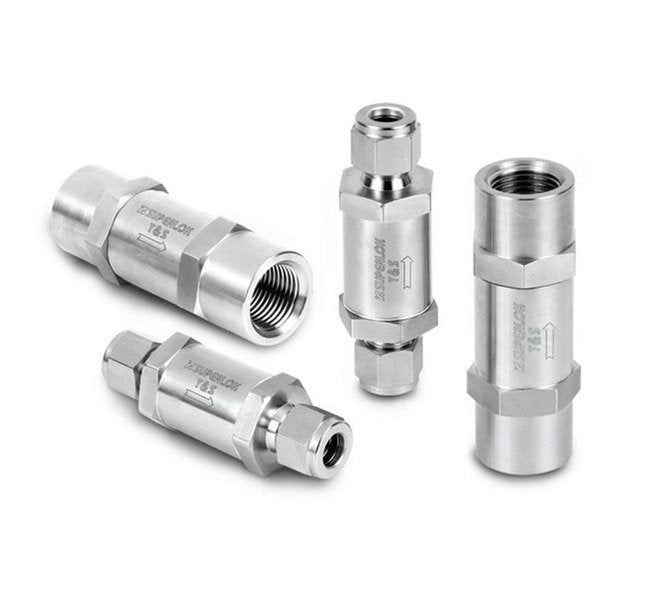

The SIF Series 2.4mm Micron Inline Filter is designed for precision filtration in limited-space applications. Featuring a durable 316 Stainless Steel | Brass body, this filter effectively removes particulate contaminants, ensuring optimum system performance. With a maximum operating pressure of 3000 psi and an operating temperature range of -20 to 900°F, this filter guarantees reliability in diverse conditions. Its replaceable filter element and versatile end connections make maintenance and installation hassle-free.
Product Specifications
Features Features
Remove system particulate contaminants.Inline filters are for use where space is limited.Replaceable filter element.1/8 to 1/2 in. and 3 to 10mm end connections.
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes. and end connections not listed are available upon request.
Technical Specs Body Material
316 Stainless Steel | Brass

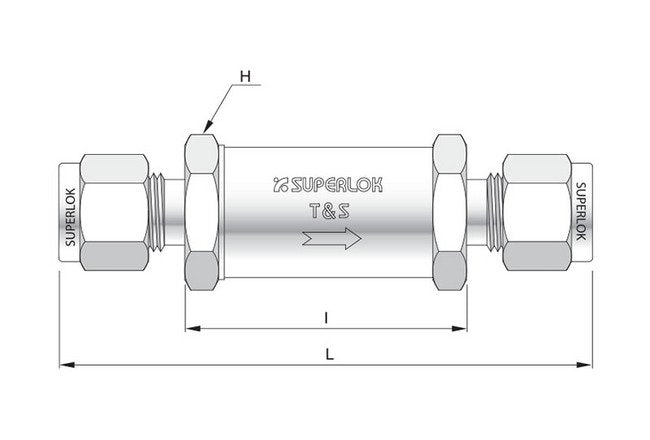

Technical Specs Dimension H
14.3 mm
Technical Specs Dimension I
29.2 mm
Technical Specs Dimension L
48.6 mm
Technical Specs Inlet End Connections
1/8 in. Male National Pipe Thread (MNPT)
Technical Specs Maximum Operating Pressure At 70 Degree Fahrenhe
3000 psi
Technical Specs Operating Temperature Range With Stainless Steel
-20 to 900 ºF | -28 to 482 ºC
Technical Specs Orifice Size
2.4 mm
Technical Specs Outlet End Connections
1/8 in. Male National Pipe Thread (MNPT)
Technical Specs Sintered Effective Filtration Area
0.55 in² | 350 mm²
