SIF Series 2.4mm Micron Inline Filter with FNPT Connections
SIF Series 2.4mm Micron Inline Filter with FNPT Connections
SKU:SIF-df1a47
High-performance 2.4mm Micron Inline Filter for efficient particulate removal in limited spaces with 1/8" FNPT Inlet.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
SIF Series 2.4mm Micron Inline Filter with FNPT Connections
$49.99
Quantity: 1
Claim Your Seller Account
SIF Series 2.4mm Micron Inline Filter with FNPT Connections
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

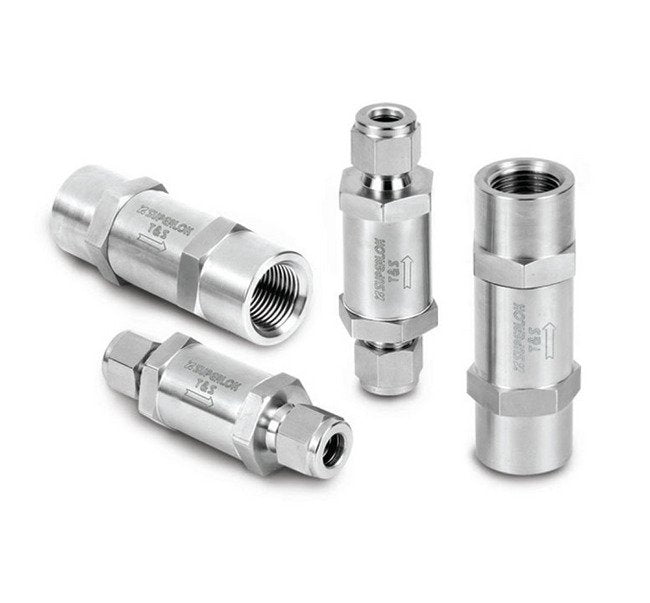

The SIF Series 2.4mm Orifice Size Micron Inline Filter with 1/8" FNPT Inlet End Connections is designed to efficiently remove system particulate contaminants, especially in limited space settings. Crafted from 316 Stainless Steel and Brass, this filter offers a sintered effective filtration area of 0.55 in², ensuring high performance. With a maximum operating pressure of 3000 psi at 70°F and an operating temperature range of -20 to 900°F, this filter is reliable and durable. Replaceable filter elements and versatile end connections make maintenance and compatibility convenient.
Product Specifications
Features Features
Remove system particulate contaminants.Inline filters are for use where space is limited.Replaceable filter element.1/8 to 1/2 in. and 3 to 10mm end connections.
Note Note

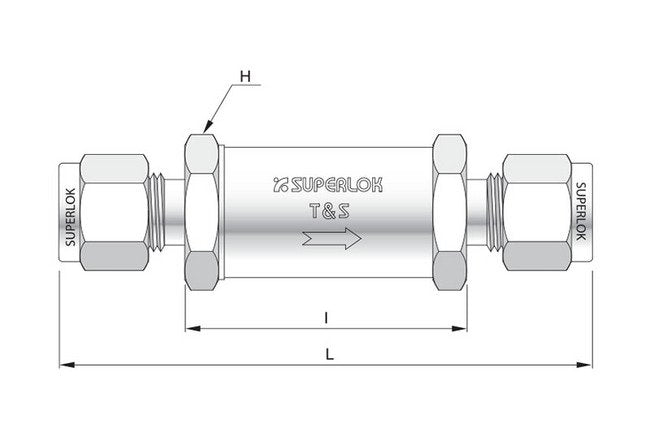

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes. and end connections not listed are available upon request.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension H
14.3 mm
Technical Specs Dimension I
29.2 mm
Technical Specs Dimension L
54.9 mm
Technical Specs Inlet End Connections
1/8 in. Female National Pipe Thread (FNPT)
Technical Specs Maximum Operating Pressure At 70 Degree Fahrenhe
3000 psi
Technical Specs Operating Temperature Range With Stainless Steel
-20 to 900 ºF | -28 to 482 ºC
Technical Specs Orifice Size
2.4 mm
Technical Specs Outlet End Connections
1/8 in. Female National Pipe Thread (FNPT)
Technical Specs Sintered Effective Filtration Area
0.55 in² | 350 mm²
