SIF Series 4.8mm Inline Filter with MNPT Inlet Connections
SIF Series 4.8mm Inline Filter with MNPT Inlet Connections
SKU:SIF-f85f93
Efficiently remove contaminants with the SIF Series 4.8mm Inline Filter for compact spaces.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
SIF Series 4.8mm Inline Filter with MNPT Inlet Connections
$49.99
Quantity: 1
Claim Your Seller Account
SIF Series 4.8mm Inline Filter with MNPT Inlet Connections
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SIF Series 4.8mm Inline Filter is a robust filtration solution designed to remove system particulate contaminants efficiently. With a compact design featuring 1/4 in. Male National Pipe Thread (MNPT) inlet and outlet connections, this inline filter is ideal for applications with limited space. The replaceable filter element ensures easy maintenance, while the sintered effective filtration area of 1.3 in² provides reliable performance. Operating at a maximum pressure of 3000 psi and a temperature range of -20 to 900 ºF, this filter is constructed with high-quality 316 Stainless Steel and Brass materials for durability and longevity.
Product Specifications
Features Features
Remove system particulate contaminants.Inline filters are for use where space is limited.Replaceable filter element.1/8 to 1/2 in. and 3 to 10mm end connections.
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes. and end connections not listed are available upon request.
Technical Specs Body Material
316 Stainless Steel | Brass

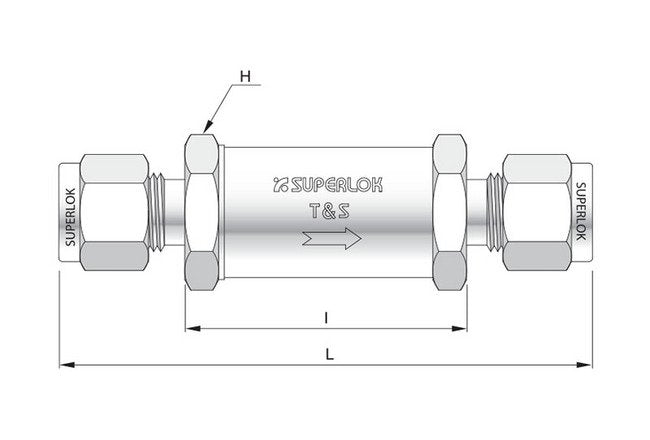

Technical Specs Dimension H
19.0 mm
Technical Specs Dimension I
39.7 mm
Technical Specs Dimension L
68.3 mm
Technical Specs Inlet End Connections
1/4 in. Male National Pipe Thread (MNPT)
Technical Specs Maximum Operating Pressure At 70 Degree Fahrenhe
3000 psi
Technical Specs Operating Temperature Range With Stainless Steel
-20 to 900 ºF | -28 to 482 ºC
Technical Specs Orifice Size
4.8 mm
Technical Specs Outlet End Connections
1/4 in. Male National Pipe Thread (MNPT)
Technical Specs Sintered Effective Filtration Area
1.3 in² | 830 mm²
