SIF Series 4.8mm Micron Inline Filter with SUPERLOK Inlet - 1/4 in.
SIF Series 4.8mm Micron Inline Filter with SUPERLOK Inlet - 1/4 in.
SKU:SIF-702f68
Efficiently remove system contaminants with the SIF Series 4.8mm Micron Inline Filter featuring 1/4 in. SUPERLOK® Inlet. Replaceable element for convenience.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
SIF Series 4.8mm Micron Inline Filter with SUPERLOK Inlet - 1/4 in.
$129.99
Quantity: 1
Claim Your Seller Account
SIF Series 4.8mm Micron Inline Filter with SUPERLOK Inlet - 1/4 in.
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SIF Series 4.8mm Micron Inline Filter with 1/4 in. SUPERLOK® Inlet End Connections is a reliable filtration solution designed for removing particulate contaminants in systems with limited space. Constructed with 316 Stainless Steel or Brass, it offers a sintered effective filtration area of 1.3 in² | 830 mm². This inline filter can operate in temperatures ranging from -20 to 900 °F | -28 to 482 °C, with a maximum operating pressure of 3000 psi. Its replaceable filter element and versatile end connections make it a versatile choice for various applications.
Product Specifications
Features Features
Remove system particulate contaminants.Inline filters are for use where space is limited.Replaceable filter element.1/8 to 1/2 in. and 3 to 10mm end connections.
Note Note

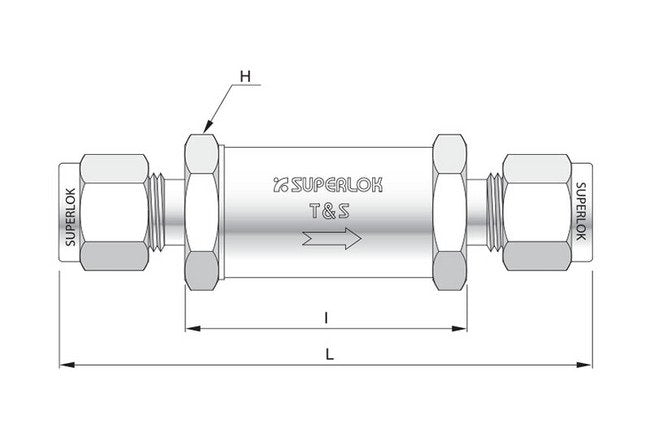

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes. and end connections not listed are available upon request.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension H
19.0 mm
Technical Specs Dimension I
39.7 mm
Technical Specs Dimension L
75.2 mm
Technical Specs Inlet End Connections
1/4 in. SUPERLOK®
Technical Specs Maximum Operating Pressure At 70 Degree Fahrenhe
3000 psi
Technical Specs Operating Temperature Range With Stainless Steel
-20 to 900 ºF | -28 to 482 ºC
Technical Specs Orifice Size
4.8 mm
Technical Specs Outlet End Connections
1/4 in. SUPERLOK®
Technical Specs Sintered Effective Filtration Area
1.3 in² | 830 mm²
