SIF Series 4.8mm Orifice Micron Inline Filter with SUPERLOK® Connections
SIF Series 4.8mm Orifice Micron Inline Filter with SUPERLOK® Connections
SKU:SIF-edca35
High-performance 4.8mm Micron Inline Filter for precise contaminant removal in compact spaces
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
SIF Series 4.8mm Orifice Micron Inline Filter with SUPERLOK® Connections
$89.99
Quantity: 1
Claim Your Seller Account
SIF Series 4.8mm Orifice Micron Inline Filter with SUPERLOK® Connections
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

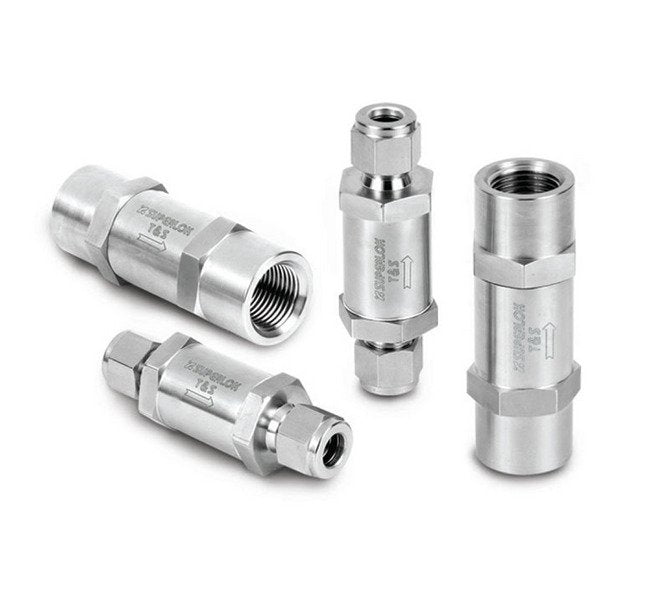

The SIF Series Micron Inline Filter features a precise 4.8mm orifice size and durable 316 Stainless Steel | Brass body material. With 6mm SUPERLOK® inlet and outlet end connections, this filter ensures efficient particulate contaminant removal in restricted spaces. Operating at a maximum pressure of 3000 psi and a broad temperature range from -20 to 900°F, it offers reliable performance in diverse industrial settings. The replaceable filter element and compact design make it ideal for applications requiring compact filtration solutions.
Product Specifications
Features Features
Remove system particulate contaminants.Inline filters are for use where space is limited.Replaceable filter element.1/8 to 1/2 in. and 3 to 10mm end connections.
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes. and end connections not listed are available upon request.
Technical Specs Body Material
316 Stainless Steel | Brass

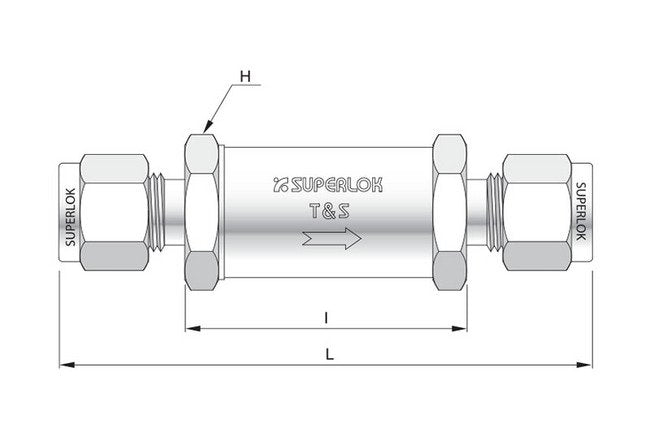

Technical Specs Dimension H
19.0 mm
Technical Specs Dimension I
39.7 mm
Technical Specs Dimension L
75.2 mm
Technical Specs Inlet End Connections
6 mm Superlok®
Technical Specs Maximum Operating Pressure At 70 Degree Fahrenhe
3000 psi
Technical Specs Operating Temperature Range With Stainless Steel
-20 to 900 ºF | -28 to 482 ºC
Technical Specs Orifice Size
4.8 mm
Technical Specs Outlet End Connections
6 mm Superlok®
Technical Specs Sintered Effective Filtration Area
1.3 in² | 830 mm²
