SIF Series 7.1mm Micron Inline Filter
SIF Series 7.1mm Micron Inline Filter
SKU:SIF-c36e0a
Efficiently remove contaminants with SIF 7.1mm Micron Inline Filter. Compact design, high-performance filtration.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
SIF Series 7.1mm Micron Inline Filter
$89.99
Quantity: 1
Claim Your Seller Account
SIF Series 7.1mm Micron Inline Filter
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

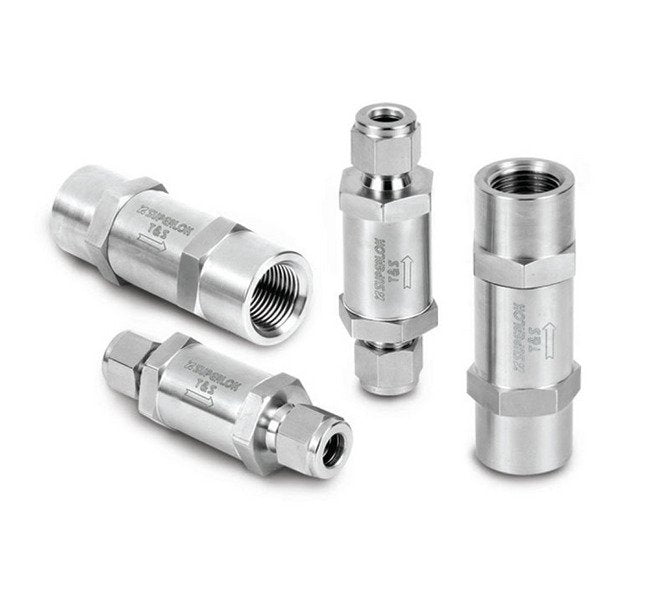

The SIF Series 7.1mm Micron Inline Filter is a high-performance solution designed for removing system particulate contaminants in tight spaces. With a 7.1mm orifice size and 3/8-inch FNPT connections, this filter ensures efficient filtration with a sintered effective filtration area of 1280 mm². Constructed from durable 316 stainless steel and brass, it offers reliable filtration with a maximum operating pressure of 3000 psi, suitable for a wide temperature range. Replaceable filter element and various end connection options make it versatile for different applications.
Product Specifications
Features Features
Remove system particulate contaminants.Inline filters are for use where space is limited.Replaceable filter element.1/8 to 1/2 in. and 3 to 10mm end connections.
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes. and end connections not listed are available upon request.
Technical Specs Body Material
316 Stainless Steel | Brass

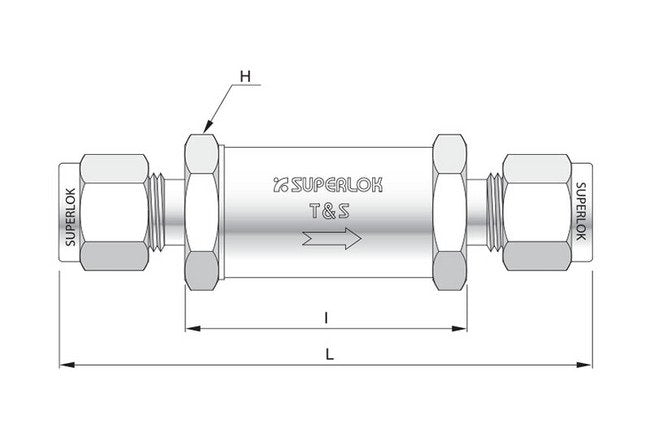

Technical Specs Dimension H
25.4 mm
Technical Specs Dimension I
43.2 mm
Technical Specs Dimension L
77.2 mm
Technical Specs Inlet End Connections
3/8 in. Female National Pipe Thread (FNPT)
Technical Specs Maximum Operating Pressure At 70 Degree Fahrenhe
3000 psi
Technical Specs Operating Temperature Range With Stainless Steel
-20 to 900 ºF | -28 to 482 ºC
Technical Specs Orifice Size
7.1 mm
Technical Specs Outlet End Connections
3/8 in. Female National Pipe Thread (FNPT)
Technical Specs Sintered Effective Filtration Area
2.0 in² | 1280 mm²
