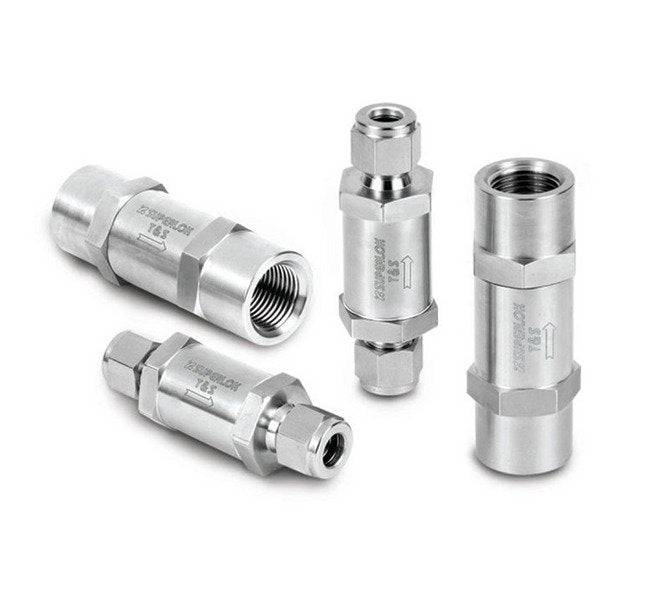

SIF Series 7.1mm Micron Inline Filter with 3/8in MNPT Inlet
SIF Series 7.1mm Micron Inline Filter with 3/8in MNPT Inlet
SKU:SIF-4e3e58
High-performance 7.1mm Micron Inline Filter with 3/8in MNPT Inlet for industrial use. Durable construction, superior filtration efficiency, and versatile end connections.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
SIF Series 7.1mm Micron Inline Filter with 3/8in MNPT Inlet
$89.99
Quantity: 1
Claim Your Seller Account
SIF Series 7.1mm Micron Inline Filter with 3/8in MNPT Inlet
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SIF Series 7.1mm Micron Inline Filter with 3/8in MNPT Inlet is a top-tier filtration solution for industrial applications. Crafted from durable 316 stainless steel or brass, this filter ensures exceptional longevity and superior filtration efficiency. With a 2.0 in² sintered effective filtration area and a maximum operating pressure of 3000 psi at 70°F, it guarantees optimal performance even in demanding conditions. The compact design with replaceable filter elements and versatile end connections makes it ideal for space-limited installations, offering reliable and consistent filtration to safeguard your systems.
Product Specifications
Features Features
Remove system particulate contaminants.Inline filters are for use where space is limited.Replaceable filter element.1/8 to 1/2 in. and 3 to 10mm end connections.
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes. and end connections not listed are available upon request.
Technical Specs Body Material
316 Stainless Steel | Brass

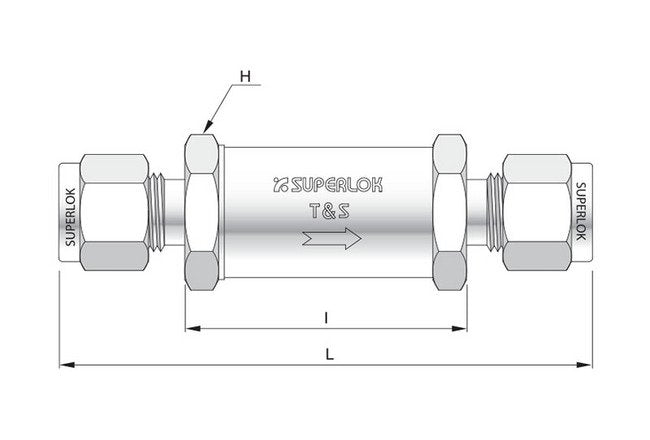

Technical Specs Dimension H
25.4 mm
Technical Specs Dimension I
43.2 mm
Technical Specs Dimension L
71.6 mm
Technical Specs Inlet End Connections
3/8 in. Male National Pipe Thread (MNPT)
Technical Specs Maximum Operating Pressure At 70 Degree Fahrenhe
3000 psi
Technical Specs Operating Temperature Range With Stainless Steel
-20 to 900 ºF | -28 to 482 ºC
Technical Specs Orifice Size
7.1 mm
Technical Specs Outlet End Connections
3/8 in. Male National Pipe Thread (MNPT)
Technical Specs Sintered Effective Filtration Area
2.0 in² | 1280 mm²
