SIF Series 7.1mm Micron Inline Filter with SUPERLOK Inlet End Connections
SIF Series 7.1mm Micron Inline Filter with SUPERLOK Inlet End Connections
SKU:SIF-8c99b8
High-performance 7.1mm Micron Inline Filter for efficient system particulate contaminant removal.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
SIF Series 7.1mm Micron Inline Filter with SUPERLOK Inlet End Connections
$99.99
Quantity: 1
Claim Your Seller Account
SIF Series 7.1mm Micron Inline Filter with SUPERLOK Inlet End Connections
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SIF Series 7.1mm Micron Inline Filter with 3/8 inch SUPERLOK Inlet End Connections is a high-performance solution designed to remove system particulate contaminants effectively. Perfect for limited space installations, this filter features a sintered effective filtration area of 2.0 in², ensuring optimum filtration efficiency. With a durable body made of 316 Stainless Steel and Brass, this filter offers reliability in diverse operating conditions, with a maximum pressure of 3000 psi and an operating temperature range from -20 to 900°F. The replaceable filter element and versatile end connections make maintenance and installation seamless, meeting the demands of both consumer and institutional buyers.
Product Specifications
Features Features
Remove system particulate contaminants.Inline filters are for use where space is limited.Replaceable filter element.1/8 to 1/2 in. and 3 to 10mm end connections.
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes. and end connections not listed are available upon request.
Technical Specs Body Material
316 Stainless Steel | Brass

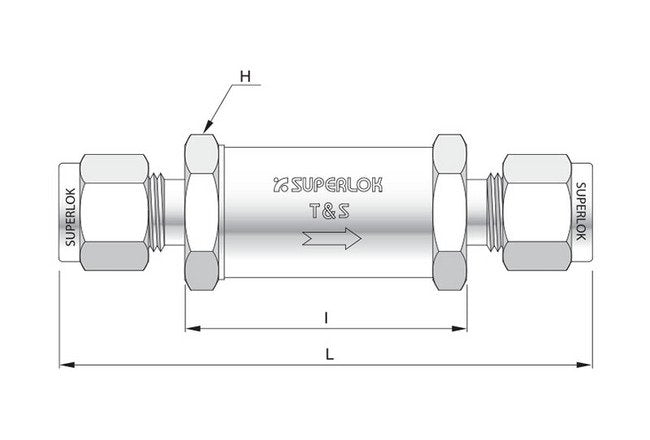

Technical Specs Dimension H
25.4 mm
Technical Specs Dimension I
43.2 mm
Technical Specs Dimension L
81.8 mm
Technical Specs Inlet End Connections
3/8 in. SUPERLOK®
Technical Specs Maximum Operating Pressure At 70 Degree Fahrenhe
3000 psi
Technical Specs Operating Temperature Range With Stainless Steel
-20 to 900 ºF | -28 to 482 ºC
Technical Specs Orifice Size
7.1 mm
Technical Specs Outlet End Connections
3/8 in. SUPERLOK®
Technical Specs Sintered Effective Filtration Area
2.0 in² | 1280 mm²
