SIF Series Micron Inline Filter
SIF Series Micron Inline Filter
SKU:SIF-4cc3e4
Precision filtration with 2.4mm orifice & 1/8 inch SUPERLOK® connections. Ideal for removing contaminants in compact setups.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
SIF Series Micron Inline Filter
$69.99
Quantity: 1
Claim Your Seller Account
SIF Series Micron Inline Filter
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

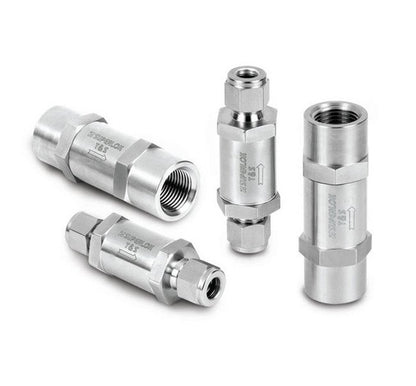

The SIF Series Micron Inline Filter offers precision with a 2.4 mm orifice size and 1/8 inch SUPERLOK® inlet end connections. Crafted from 316 Stainless Steel and Brass, this filter provides a sintered effective filtration area of 0.55 in². Operating at a maximum pressure of 3000 psi and enduring temperatures from -20 to 900 ºF, this filter is ideal for removing system particulate contaminants in limited space applications.
Product Specifications
Features Features
Remove system particulate contaminants.Inline filters are for use where space is limited.Replaceable filter element.1/8 to 1/2 in. and 3 to 10mm end connections.
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes. and end connections not listed are available upon request.
Technical Specs Body Material
316 Stainless Steel | Brass

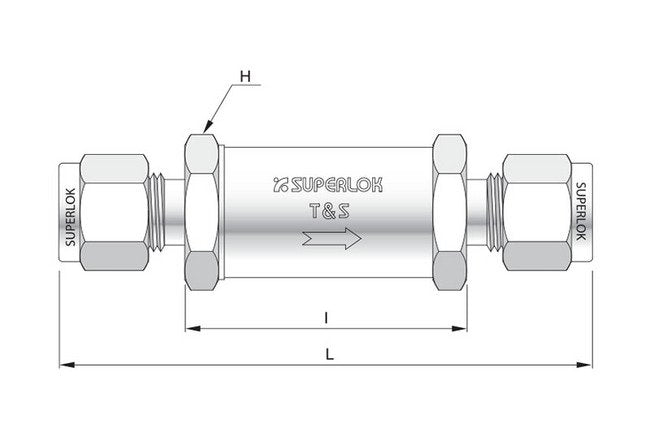

Technical Specs Dimension H
14.3 mm
Technical Specs Dimension I
29.2 mm
Technical Specs Dimension L
59.7 mm
Technical Specs Inlet End Connections
1/8 in. Superlok®
Technical Specs Maximum Operating Pressure At 70 Degree Fahrenhe
3000 psi
Technical Specs Operating Temperature Range With Stainless Steel
-20 to 900 ºF | -28 to 482 ºC
Technical Specs Orifice Size
2.4 mm
Technical Specs Outlet End Connections
1/8 in. SUPERLOK®
Technical Specs Sintered Effective Filtration Area
0.55 in² | 350 mm²
