SIF Series Micron Inline Filter 4.8mm Orifice FNPT Connections
SIF Series Micron Inline Filter 4.8mm Orifice FNPT Connections
SKU:SIF-48fd37
Efficiently filter contaminants with the SIF Series 4.8mm Micron Inline Filter, ideal for compact spaces. Replaceable element and versatile connections.
Regular price
$119.99
Regular price
Sale price
$119.99
Unit price
per
Initiate Order
SIF Series Micron Inline Filter 4.8mm Orifice FNPT Connections
$119.99
Quantity: 1
Claim Your Seller Account
SIF Series Micron Inline Filter 4.8mm Orifice FNPT Connections
$119.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SIF Series Micron Inline Filter features a 4.8mm Orifice and 1/4" FNPT Inlet End Connections. Constructed with 316 Stainless Steel and Brass, it offers an effective filtration area of 1.3in². With a maximum operating pressure of 3000 psi, operating temperatures ranging from -20 to 900°F, and compact dimensions, this filter is ideal for tight spaces. It removes system contaminants, has a replaceable filter element, and is adaptable to various end connections.
Product Specifications
Features Features
Remove system particulate contaminants.Inline filters are for use where space is limited.Replaceable filter element.1/8 to 1/2 in. and 3 to 10mm end connections.
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes. and end connections not listed are available upon request.
Technical Specs Body Material
316 Stainless Steel | Brass

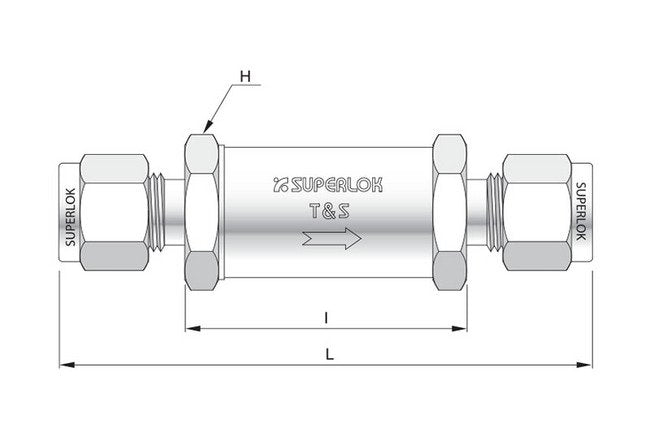

Technical Specs Dimension H
19.0 mm
Technical Specs Dimension I
39.7 mm
Technical Specs Dimension L
72.9 mm
Technical Specs Inlet End Connections
1/4 in. Female National Pipe Thread (FNPT)
Technical Specs Maximum Operating Pressure At 70 Degree Fahrenhe
3000 psi
Technical Specs Operating Temperature Range With Stainless Steel
-20 to 900 ºF | -28 to 482 ºC
Technical Specs Orifice Size
4.8 mm
Technical Specs Outlet End Connections
1/4 in. Female National Pipe Thread (FNPT)
Technical Specs Sintered Effective Filtration Area
1.3 in² | 830 mm²
