Sigma Thermal HC-1 Industrial Thermal Fluid Heater
Sigma Thermal HC-1 Industrial Thermal Fluid Heater
SKU:THE-ea0f64
Efficient Sigma Thermal HC-1 Industrial Thermal Fluid Heater for high temperature operations. ASME compliant, versatile configurations.
Regular price
$7,499.99
Regular price
Sale price
$7,499.99
Unit price
per
Initiate Order
Sigma Thermal HC-1 Industrial Thermal Fluid Heater
$7,499.99
Quantity: 1
Claim Your Seller Account
Sigma Thermal HC-1 Industrial Thermal Fluid Heater
$7,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sigma Thermal HC-1 Industrial Thermal Fluid Heater, also known as thermal oil heater, offers precise indirect heating using a liquid-phase heat transfer medium. With a single helical coil design allowing two passes of flue gas, this heater ensures optimal efficiency. The HC-1 is built with ASME Section VIII standards, and its insulation, combustion chamber size, and burner flexibility make it a reliable and cost-effective choice. With capacities ranging from 500,000 to 20 MM Btu/hour, advanced control systems, and various configuration options, the HC-1 is designed to meet the demanding requirements of industrial and institutional settings.
Product Specifications
Specifications Advanced Control Systems
Complete control systems are engineered to optimize system safety and performance. Sigma thermal can supply simple and cost effective standard panels, as well as full process automation and PLC based combustion control/BMS.
Specifications Capacities
Net Output Capacities are available from 500,000 to 20 MM Btu/hour
Specifications Classification
The HC-1 can be designed to meet all area classifications and endure harsh environments.
Specifications Conservative Design
Single coil design offers sturdy reliability at a lower cost than the HC-2. Generous combustion chamber size ensures no flame impingement to the coil.
Specifications Fuel Source And Burner Flexibility
Sigma Thermal can provide standard or engineered burner configurations for use with both traditional and alternative fuel sources. Low emissions burners available to meet all emission requirements (e.g., Low NOx, Best Available Control Technology).
Specifications Insulation
The heater shell is internally insulated with ceramic fiber insulation and externally painted.
Specifications Range Of Configurations

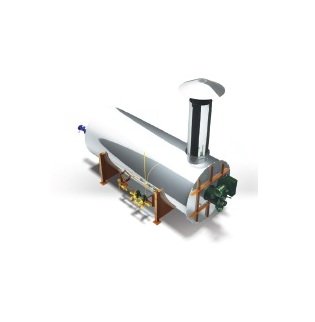

The HC-1 can be designed in various configurations to fit your process. Heater Configuration options include vertical up-fired, vertical down-fired, and horizontal.

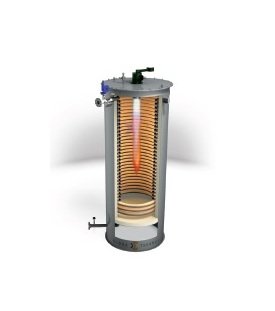

Specifications Single Helical Coil Design
This design allows for two passes of flue gas along conservative coil surface area.
