Signal Brown Female Connector, 4 Poles - 20A
Signal Brown Female Connector, 4 Poles - 20A
SKU:CIR-30190d
High-quality Signal Brown Female Connector with 4 poles and 20A rating for reliable outdoor electrical connections.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Signal Brown Female Connector, 4 Poles - 20A
$24.99
Quantity: 1
Claim Your Seller Account
Signal Brown Female Connector, 4 Poles - 20A
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

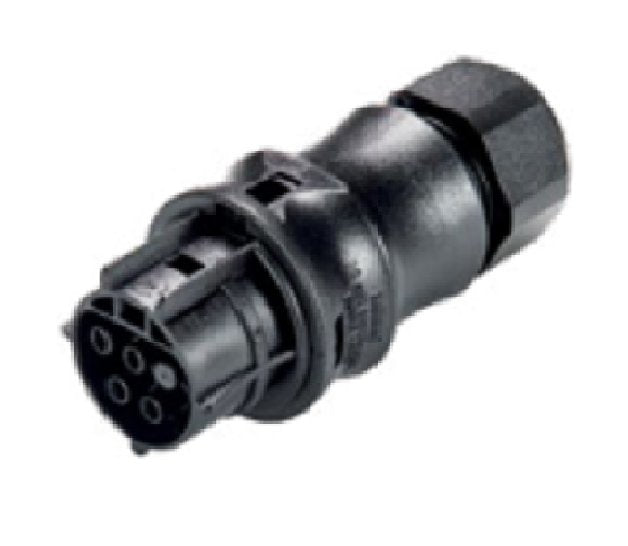

The Signal Brown Female Connector is a high-quality 4-pole electrical connector designed by Wieland, featuring a straight plug angle for easy installation. With a screw connection type, this connector supports cables ranging from 6mm to 10mm in diameter, with a rated current of 20A. Its IP69 and Type 4X/6P protection ratings ensure durability in outdoor environments. Compliant with IEC and cULus wire size standards, this connector is ideal for various outdoor applications requiring reliable connectivity.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note
Technical details are subject to change
Specifications Angle Of Plug
Straight
Specifications Color Of Codingcontact Carrier
Signal Brown
Specifications Connection Type
Screw Connection
Specifications Number Of Poles
4
Specifications Type
Female
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
10 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
6 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
20 A
Technical Data Wire Size According To Canadian Ul Listed United
18 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.75 to 4 mm²
