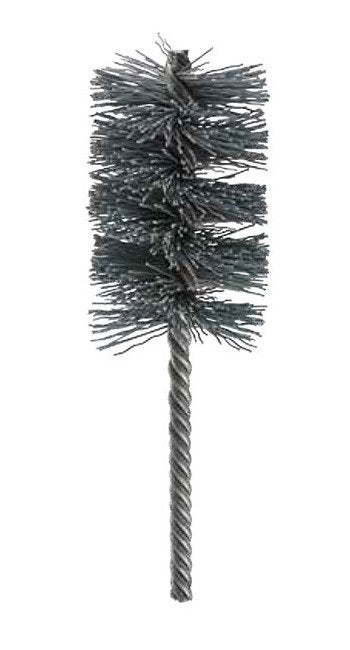

Silicon Carbide Abrasive Nylon Twisted Brush - 1-1/2 in, 80 Grit
Silicon Carbide Abrasive Nylon Twisted Brush - 1-1/2 in, 80 Grit
SKU:TWI-0f0969
Achieve precision deburring with the Tanis® Silicon Carbide Abrasive Nylon Twisted Brush - 1-1/2 in, 80 Grit. Ideal for tubular components & drilled holes.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Silicon Carbide Abrasive Nylon Twisted Brush - 1-1/2 in, 80 Grit
$29.99
Quantity: 1
Claim Your Seller Account
Silicon Carbide Abrasive Nylon Twisted Brush - 1-1/2 in, 80 Grit
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Tanis® Silicon Carbide Abrasive Nylon Twisted Brush is a precision tool designed for internal deburring and finishing applications in tubular components and drilled holes. With a 1-1/2 in diameter, 80 grit size, and 0.040 in filament diameter, this brush guarantees optimal performance. Its twisted brush stem construction ensures strength and density fill for efficient operations in CNC machine tools. Operating at speeds between 100-500 RPM, this brush offers safe and effective finishing. Ensure compliance with federal procurement standards and industry-specific certifications with this high-quality, durable brush.
Product Specifications
Before Starting The Twist Brush Rotation
Secure the brush in the chuck.Ensure clockwise brush rotation-counter clockwise rotation can cause the brush to come apart and release the filament.Securely clamp the workpiece. Make sure all machine guards are in position.Align the brush with the workpiece to ensure the brush rotates on its true center line and avoid stem deflection.Guide the brush into the hole before starting the brush rotation.Always wear eye protection and protective clothing!
Note
Additional diameters and grits available upon request.
Operating Recommendations
When mounting a twisted brush in a collet or chuck, it is recommended to minimize the overhang of the stem to under an inch. This is particularly true with power tube brushes, and it is important to avoid any load conditions and operating speeds that can cause stem deflections and destructive bending. A safe operating speed from 100-500 RPM is recommended for most twisted brushes.To reach into deeper holes we recommend the use of collet-ready shank mounted brushes or drill extension rods rather than increasing stem overhang.
Other Considerations
Wire OptionsCoatedGalvanizedStainless SteelFilament OptionsAbrasive NylonCeramiX®BrassCarbon SteelHorse HairNylonStainless SteelCrimped, Level or Color OptionsGaugeStem DiameterOtherShank TypeTubingCouplingLoopNo Loop
Specifications Brush Diameter
1-1/2 in
Specifications Brush Length
2-1/2 in
Specifications Brush Tip Styles
Continuous End | Cut Off End
Specifications Filament Diameter
0.040 in
Specifications Material
Silicon Carbide
Specifications Overall Length
5-1/2 in
Specifications Size
80 grit
Specifications Stem Diameter
1/4 in

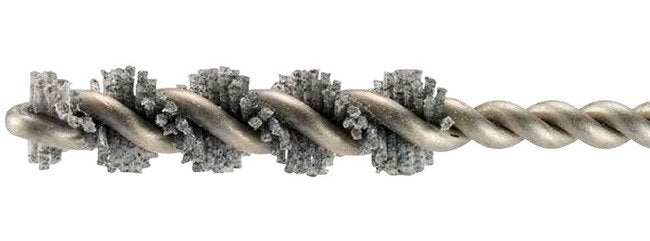

Twisted Brush Stem Construction
Filament is twisted between four stem wires, with two stem wires on each side for additional strength and higher density fill.
