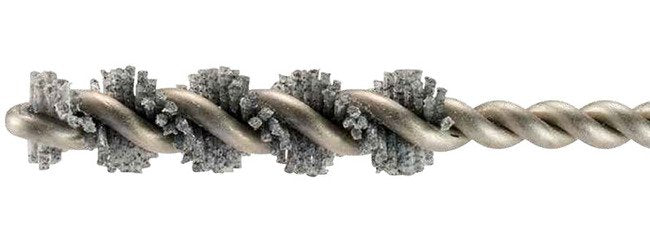

Silicon Carbide Abrasive Nylon Twisted Brush - 7/8" Diameter, 120 Grit, 3-1/2" Length
Silicon Carbide Abrasive Nylon Twisted Brush - 7/8" Diameter, 120 Grit, 3-1/2" Length
SKU:TWI-6f3249
Achieve optimal burr removal with our Silicon Carbide Abrasive Twisted Brush. Ideal for wet/dry applications, deburring, and thread cleaning.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Silicon Carbide Abrasive Nylon Twisted Brush - 7/8" Diameter, 120 Grit, 3-1/2" Length
$24.99
Quantity: 1
Claim Your Seller Account
Silicon Carbide Abrasive Nylon Twisted Brush - 7/8" Diameter, 120 Grit, 3-1/2" Length
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unparalleled burr removal efficiency with our Tanis® Silicon Carbide Abrasive Nylon Twisted Brush. Designed for wet/dry applications, this brush excels in cross-hole deburring, thread cleaning, and crankshaft bore maintenance. With a single stem, single spiral construction and recommended operating speed of 100-500 RPM, it ensures precise deburring without filament release risks. Explore additional diameters and grits for versatile applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Before Starting The Twist Brush Rotation
Secure the brush in the chuck.Ensure clockwise brush rotation-counter clockwise rotation can cause the brush to come apart and release the filament.Securely clamp the workpiece. Make sure all machine guards are in position.Align the brush with the workpiece to ensure the brush rotates on its true center line and avoid stem deflection.Guide the brush into the hole before starting the brush rotation.Always wear eye protection and protective clothing!
Note
Additional diameters and grits available upon request.
Operating Recommendations
When mounting a twisted brush in a collet or chuck, it is recommended to minimize the overhang of the stem to under an inch. This is particularly true with power tube brushes, and it is important to avoid any load conditions and operating speeds that can cause stem deflections and destructive bending. A safe operating speed from 100-500 RPM is recommended for most twisted brushes.To reach into deeper holes we recommend the use of collet-ready shank mounted brushes or drill extension rods rather than increasing stem overhang.
Other Considerations
Wire OptionsCoatedGalvanizedStainless SteelFilament OptionsAbrasive NylonCeramiX®BrassCarbon SteelHorse HairNylonStainless SteelCrimped, Level or Color OptionsGaugeStem DiameterOtherShank TypeTubingCouplingLoopNo Loop
Specifications Brush Diameter
7/8 in
Specifications Brush Length
1 in
Specifications Brush Tip Styles
Continuous End | Cut Off End
Specifications Filament Diameter
0.040 in
Specifications Material
Silicon Carbide
Specifications Overall Length
3-1/2 in
Specifications Size
120 grit
Specifications Stem Diameter
3/16 in
Twisted Brush Stem Construction
Single stem, single spiral tube brush with short handle and loop end.
