Silicon Monoxide Baffled Box Source
Silicon Monoxide Baffled Box Source
SKU:BAF-119af4
Achieve precise silicon monoxide deposition with our Silicon Monoxide Baffled Box Source. Control spitting and streaming effectively. Ideal for horizontal or vertical positioning.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Silicon Monoxide Baffled Box Source
$499.99
Quantity: 1
Claim Your Seller Account
Silicon Monoxide Baffled Box Source
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

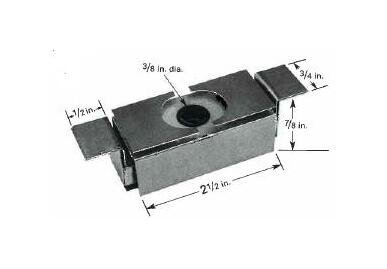

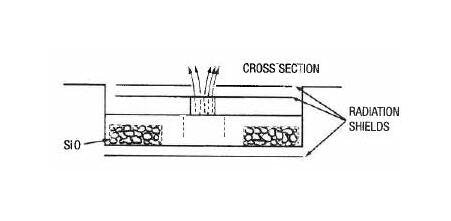

The Silicon Monoxide Baffled Box Source, part of the Baffled Box Sources line by R.D. Mathis Company, offers a precise and effective method of depositing silicon monoxide. Featuring a unique design with separate cavities and baffles, this source ensures a controlled deposition process that eliminates spitting and streaming issues. With dimensions of 2 1/2'' base length, 3/8'' hole diameter, and a height of 7/8'', this source is ideal for both horizontal and vertical positioning. The 600 W power capacity and 5g material weight make it suitable for various deposition applications. Additional sizes are available upon request, catering to specific institutional requirements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Manufacturing Notes 0
Additional sizes are available upon request.
Specifications Base Length
2 1/2 in
Specifications Height
7/8 in
Specifications Hole Diameter
3/8 in
Specifications Material Weight
5 g
Specifications Positioning Type
Horizontal | Vertical
Specifications Power
600 W
