Silicon Monoxide Baffled Box Source
Silicon Monoxide Baffled Box Source
SKU:BAF-adb658
Achieve precise Silicon Monoxide deposition with the Baffled Box Source by R.D. Mathis. Prevent pinholes effectively.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Silicon Monoxide Baffled Box Source
$499.99
Quantity: 1
Claim Your Seller Account
Silicon Monoxide Baffled Box Source
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

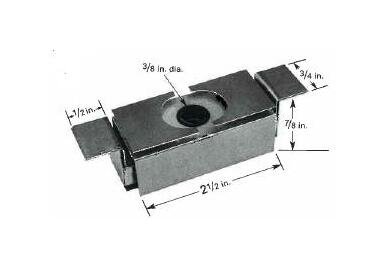

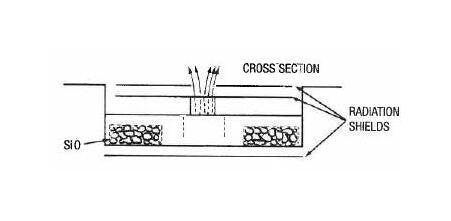

The Silicon Monoxide Baffled Box Source by R.D. Mathis is a highly effective solution for depositing Silicon Monoxide. This innovative source features a design with two separate cavities and a series of baffles to ensure precise deposition without spitting or streaming, minimizing pinholes. With dimensions of 2 1/2 inches base length, 3/8-inch hole diameter, and 7/8-inch height, and a material weight of 5g, this source operates at 600W power, utilizing an inverted positioning type for optimal performance. Custom sizes available upon request.
Product Specifications
Manufacturing Notes 0
Additional sizes are available upon request.
Specifications Base Length
2 1/2 in
Specifications Height
7/8 in
Specifications Hole Diameter
3/8 in
Specifications Material Weight
5 g
Specifications Positioning Type
Inverted
Specifications Power
600 W
