Silicon Monoxide Baffled Box Source
Silicon Monoxide Baffled Box Source
SKU:BAF-d2fb84
Efficient Silicon Monoxide deposition with precision and no pinholes. Versatile for horizontal & vertical use. Additional sizes available.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
Silicon Monoxide Baffled Box Source
$1,299.99
Quantity: 1
Claim Your Seller Account
Silicon Monoxide Baffled Box Source
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

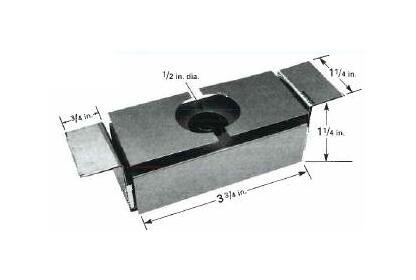

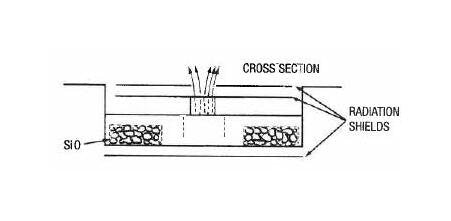

The Silicon Monoxide Baffled Box Source by R.D. Mathis Company is a proven and highly efficient method for depositing Silicon Monoxide. Featuring dual cavities, baffles, and a vertical chimney design, this source ensures precise deposition with no risk of spitting or streaming, eliminating pinholes. With a base length of 3 3/4 in, hole diameter of 1/2 in, and a power of 950 W, this source is versatile and reliable, suitable for both horizontal and vertical positioning. Additional sizes are available upon request.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Manufacturing Notes 0
Additional sizes are available upon request.
Specifications Base Length
3 3/4 in
Specifications Height
1 1/4 in
Specifications Hole Diameter
1/2 in
Specifications Material Weight
20 g
Specifications Positioning Type
Horizontal | Vertical
Specifications Power
950 W
