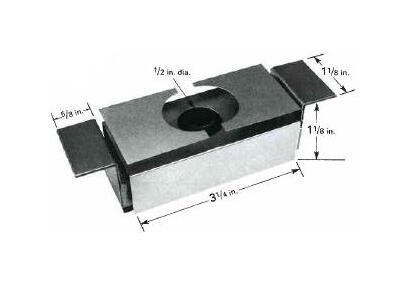

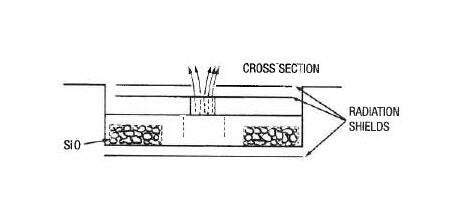

The Baffled Box Silicon Monoxide Source by R.D. Mathis Company offers a highly effective method for depositing Silicon Monoxide. Designed with two separate cavities and baffles, this source ensures controlled material flow without spitting or streaming, preventing pinholes on substrates. With a base length of 3 1/4 in, hole diameter of 1/2 in, and a power capacity of 750 W, this source provides precise and reliable operation. Additional sizes are available on request to meet specific institutional requirements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Manufacturing Notes 0
Additional sizes are available upon request.
Specifications Base Length
3 1/4 in
Specifications Height
1 1/8 in
Specifications Hole Diameter
1/2 in
Specifications Material Weight
10 g
Specifications Positioning Type
Horizontal | Vertical
Specifications Power
750 W
