Silicon Monoxide Baffled Box Source - SO Series
Silicon Monoxide Baffled Box Source - SO Series
SKU:BAF-81b791
Enhanced SO Series Silicon Monoxide Source with advanced baffling and complete sealing for optimal material deposition efficiency.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Silicon Monoxide Baffled Box Source - SO Series
$299.99
Quantity: 1
Claim Your Seller Account
Silicon Monoxide Baffled Box Source - SO Series
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

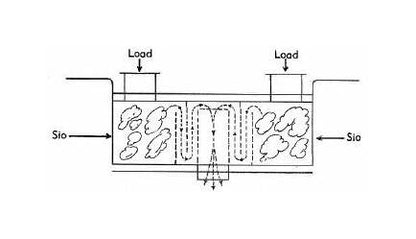

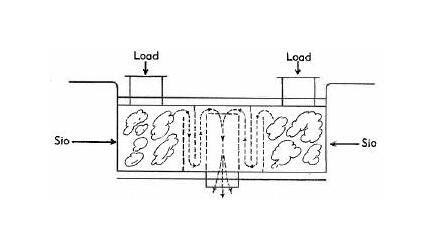

The Silicon Monoxide Baffled Box Source in the new SO Series is a superior upgrade to the SM series, featuring advanced baffling and shielding for an indirect material to substrate path. With longer lifespan, leak elimination, in-system loading capability, and fully sealed construction, this source ensures premium performance and efficiency for evaporation processes in research and industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features 0
The new SO Series silicon monoxide source offers the following features: Longer lifeEliminates leakageLoading without removal from system and âcompletely sealedâ one unit construction.
Manufacturing Notes 0
Large SO Series Sources available on request

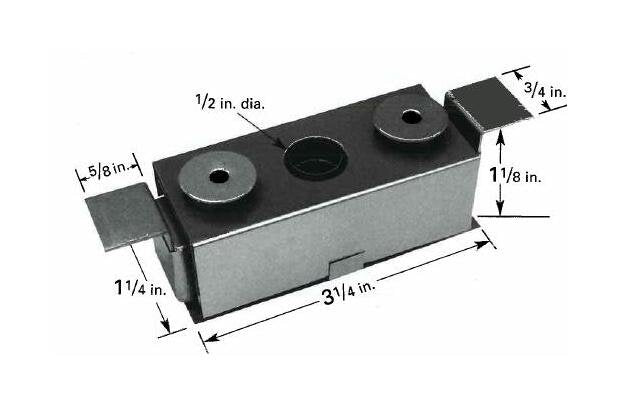

Specifications Base Length
3 1/4 in
Specifications Evaporation Direction
Down
Specifications Height
1 1/8 in
Specifications Hole Diameter
1/2 in
Specifications Material Weight
13 g
