Silicon Monoxide Baffled Box Sources
Silicon Monoxide Baffled Box Sources
SKU:BAF-71654a
Achieve precise Silicon Monoxide deposition with our innovative Baffled Box Sources.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Silicon Monoxide Baffled Box Sources
$499.99
Quantity: 1
Claim Your Seller Account
Silicon Monoxide Baffled Box Sources
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

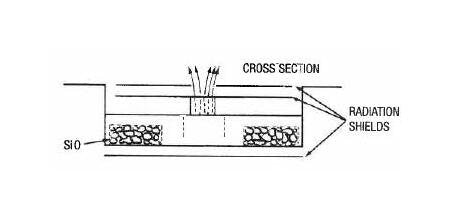

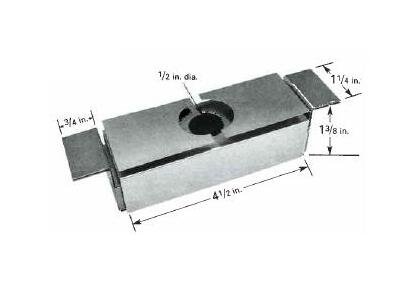

The Silicon Monoxide Baffled Box Sources from R.D. Mathis Company provide a highly successful deposition method. Featuring distinct cavities and baffles, this source ensures precise material delivery without spitting or pinholes. With dimensions of 4 1/2 in (L) x 1 3/8 in (H) and 1100 W power, it offers reliable performance. Additional sizes are customizable upon request.
Product Specifications
Manufacturing Notes 0
Additional sizes are available upon request.
Specifications Base Length
4 1/2 in
Specifications Height
1 3/8 in
Specifications Hole Diameter
1/2 in
Specifications Material Weight
40 g
Specifications Positioning Type
Horizontal | Vertical
Specifications Power
1100 W
