Silicon Monoxide Baffled Box Sources
Silicon Monoxide Baffled Box Sources
SKU:BAF-74a665
Highly efficient Silicon Monoxide source with controlled deposition ideal for precision applications.
Regular price
$159.99
Regular price
Sale price
$159.99
Unit price
per
Initiate Order
Silicon Monoxide Baffled Box Sources
$159.99
Quantity: 1
Claim Your Seller Account
Silicon Monoxide Baffled Box Sources
$159.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

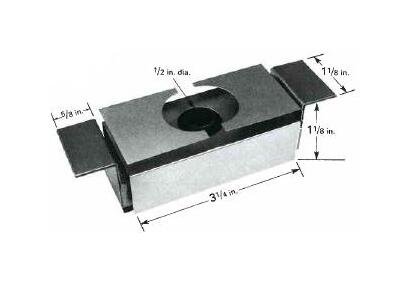

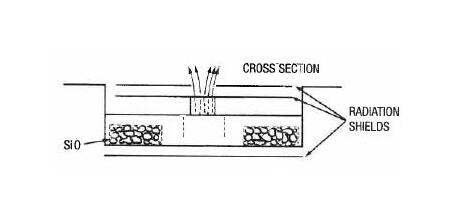

The Silicon Monoxide Baffled Box Sources from R.D. Mathis Company offer a highly successful method for depositing Silicon Monoxide. Featuring a unique design with two separate cavities and baffles, it ensures a controlled flow of the source material without spitting or streaming, minimizing pinhole formation. With base length of 3 1/4 in, hole diameter of 1/2 in, and a power capacity of 750 W, this source is reliable and efficient.
Product Specifications
Manufacturing Notes 0
Additional sizes are available upon request.
Specifications Base Length
3 1/4 in
Specifications Height
1 1/8 in
Specifications Hole Diameter
1/2 in
Specifications Material Weight
10 g
Specifications Positioning Type
Inverted
Specifications Power
750 W
