Silicon Monoxide Zinc Sulphide Baffled Box Source
Silicon Monoxide Zinc Sulphide Baffled Box Source
SKU:BAF-b41447
Innovative Silicon Monoxide / Zinc Sulphide source for precise deposition without spitting issues.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Silicon Monoxide Zinc Sulphide Baffled Box Source
$499.99
Quantity: 1
Claim Your Seller Account
Silicon Monoxide Zinc Sulphide Baffled Box Source
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

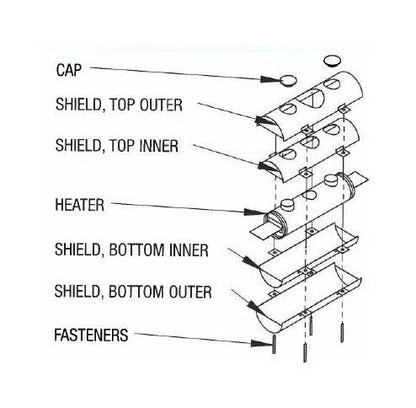

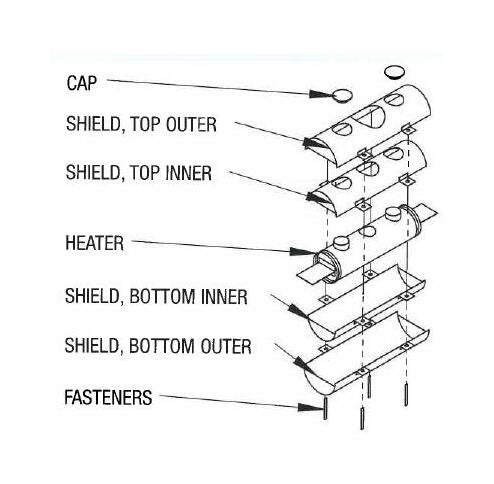

The High Volume Silicon Monoxide / Zinc Sulphide Box Source, part of the Baffled Box Sources line, offers a cutting-edge solution for depositing Silicon Monoxide. Its innovative design ensures controlled deposition through separate cavities and baffles, eliminating spitting and streaming issues. With dimensions W: 4.250 in, OL: 7.250 in, D: 0.750 in, and a volume of 250 cm³, this source guarantees precision and reliability. Recommended for 50% of stated volumes for optimal performance.
Product Specifications
Manufacturing Notes 0
Volumes shown are maximums.Recommended usage is 50% of volumes indicated.

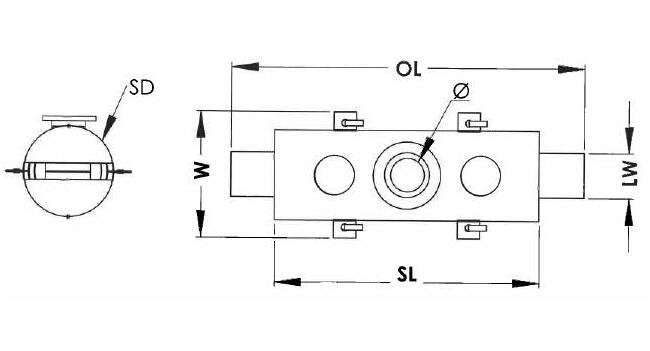

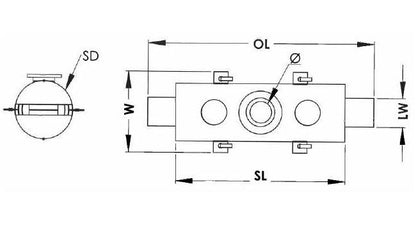

Specifications Diameter
0.750 in
Specifications Dimension Lw
2.250 in
Specifications Dimension Ol
7.250 in
Specifications Dimension Sd
3.000 in
Specifications Dimension Sl
5.875 in
Specifications Dimension W
4.250 in
Specifications Volume
250 cm³
