Silicon Monoxide/Zinc Sulphide Baffled Box Source
Silicon Monoxide/Zinc Sulphide Baffled Box Source
SKU:BAF-588bbf
Precision deposition with minimal pinhole risk. Ideal for high-volume usage.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
Silicon Monoxide/Zinc Sulphide Baffled Box Source
$1,299.99
Quantity: 1
Claim Your Seller Account
Silicon Monoxide/Zinc Sulphide Baffled Box Source
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Volume Silicon Monoxide/Zinc Sulphide Baffled Box Source provides a cutting-edge solution for depositing Silicon Monoxide with precision and reliability. Designed with separate cavities and baffles, this source material ensures a controlled path for deposition, eliminating spitting and streaming issues that can lead to pinholes. With dimensions optimized for high-volume usage and manufacturing notes for efficient operation, this source is a must-have for institutions requiring superior deposition performance.

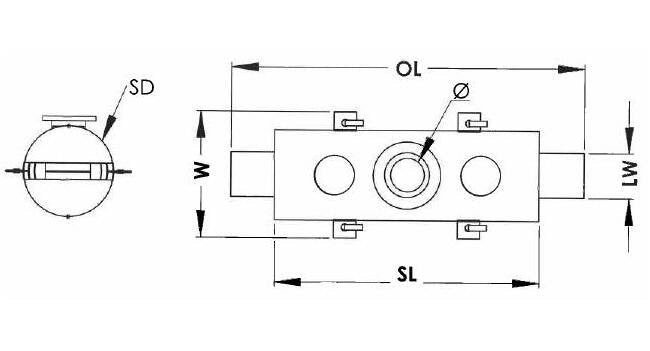

Product Specifications
Manufacturing Notes 0
Volumes shown are maximums.Recommended usage is 50% of volumes indicated.
Specifications Diameter
0.750 in
Specifications Dimension Lw
2.250 in
Specifications Dimension Ol
11.000 in
Specifications Dimension Sd
3.000 in
Specifications Dimension Sl
8.625 in
Specifications Dimension W
4.250 in
Specifications Volume
500 cm³
