Silicon Monoxide/Zinc Sulphide Baffled Box Source
Silicon Monoxide/Zinc Sulphide Baffled Box Source
SKU:BAF-61986a
High Volume Silicon Monoxide / Zinc Sulphide source for precise & reliable semiconductor deposition.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
Silicon Monoxide/Zinc Sulphide Baffled Box Source
$2,499.99
Quantity: 1
Claim Your Seller Account
Silicon Monoxide/Zinc Sulphide Baffled Box Source
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

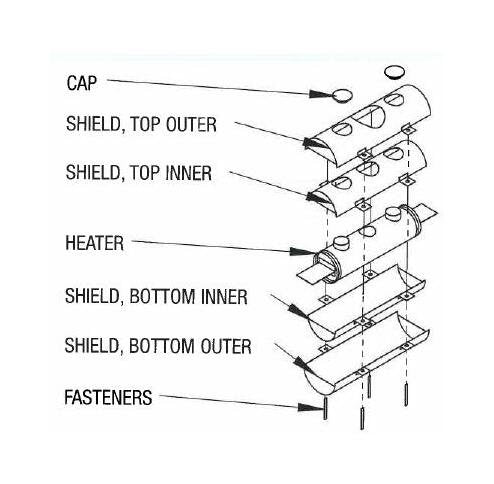

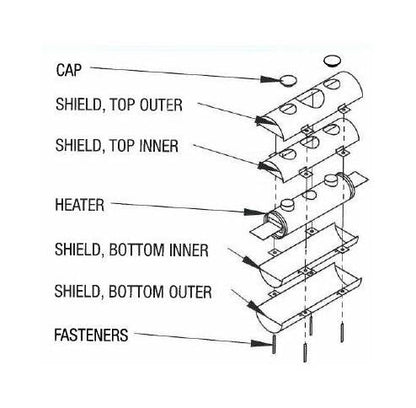

The High Volume Silicon Monoxide / Zinc Sulphide Baffled Box Source offers a unique method of depositing Silicon Monoxide securely and efficiently. With separate cavities and baffles that guide the material through the heating process, this source eliminates spitting and stream interruptions, preventing pinholes in the deposition. Ideal for high-volume applications, this source ensures precise and reliable results for your semiconductor manufacturing needs.
Product Specifications
Manufacturing Notes 0
Volumes shown are maximums.Recommended usage is 50% of volumes indicated.

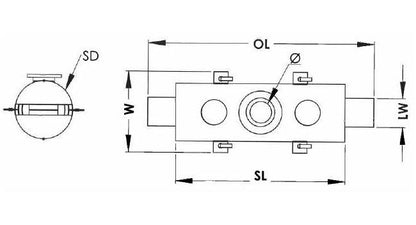

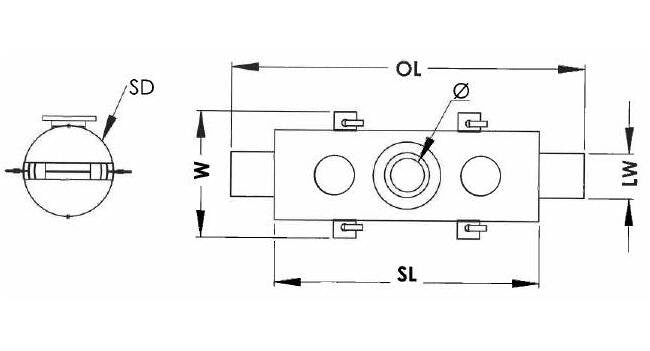

Specifications Diameter
0.750 in
Specifications Dimension Lw
0.750 in
Specifications Dimension Ol
7.625 in
Specifications Dimension Sd
2.000 in
Specifications Dimension Sl
5.875 in
Specifications Dimension W
3.250 in
Specifications Volume
100 cm³
