Silicon Monoxide / Zinc Sulphide Baffled Box Source
Silicon Monoxide / Zinc Sulphide Baffled Box Source
SKU:BAF-46a545
High Volume Silicon Monoxide / Zinc Sulphide Box Source - Efficient Silicon Monoxide deposition with anti-spitting design
Regular price
$3,499.99
Regular price
Sale price
$3,499.99
Unit price
per
Initiate Order
Silicon Monoxide / Zinc Sulphide Baffled Box Source
$3,499.99
Quantity: 1
Claim Your Seller Account
Silicon Monoxide / Zinc Sulphide Baffled Box Source
$3,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Volume Silicon Monoxide / Zinc Sulphide Box Source offers a precise and effective method for depositing Silicon Monoxide. Featuring separate cavities and baffles to ensure a controlled pathway, this source eliminates spitting and streaming issues, preventing pinholes during the deposition process. With dimensions of 4.250 x 8.125 x 0.750 inches and a volume of 300 cm³, it provides reliable and consistent results. Ideal for industrial applications requiring high-quality thin film deposition.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Manufacturing Notes 0
Volumes shown are maximums.Recommended usage is 50% of volumes indicated.

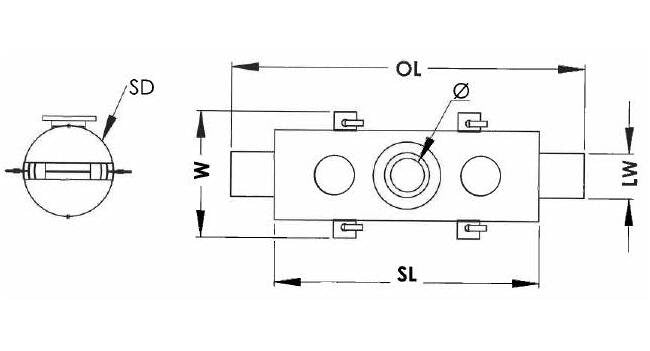

Specifications Diameter
0.750 in
Specifications Dimension Lw
1.000 in
Specifications Dimension Ol
8.125 in
Specifications Dimension Sd
3.000 in
Specifications Dimension Sl
5.875 in
Specifications Dimension W
4.250 in
Specifications Volume
300 cm³
