Silicone Coated FEP Cable with Nomex Jacket
Silicone Coated FEP Cable with Nomex Jacket
SKU:HIG-3f9544
High voltage cable with Silicone Coated FEP, Nomex jacket for superior dielectric bond & abrasion resistance. Operating temp: -55 to +125 °C.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Silicone Coated FEP Cable with Nomex Jacket
$29.99
Quantity: 1
Claim Your Seller Account
Silicone Coated FEP Cable with Nomex Jacket
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

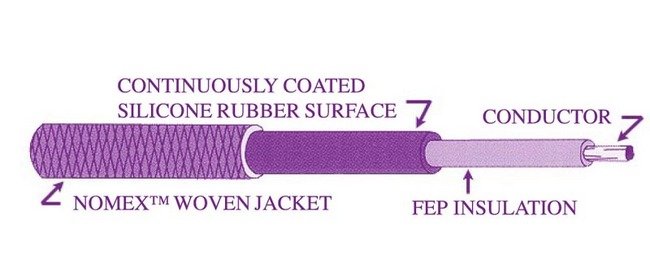

The Silicone Coated FEP Cable with Nomex Jacket offers superior dielectric bonding and abrasion resistance. The silicone rubber coating over FEP insulation, with a Nomex woven protective jacket, ensures durability and potting characteristics. Operating temperature ranges from -55 to +125 °C, ideal for various applications requiring high voltage performance.
Product Specifications
Alternate Cable Part Number Equivalents Silicone Coated Part Num
178-5627
Cable Wire Properties Etched
No
Cable Wire Properties Jacketed
Yes
Cable Wire Properties Silicone Coated
Yes
Cable Wire Properties Twisted Pair
No
Cable Wire Properties Twisted Shielded Pair
No
Specifications Conductor Diameter
0.056 in | 0.095 in | 1.430 mm
Specifications Conductor Gauge
16 AWG
Specifications Conductor Material
Copper
Specifications Conductor Plating
Silver Plated
Specifications Conductor Strands
19/29
Specifications Default Color
Natural
Specifications Diameter Over Silicone Coating
0.095 in | 2.410 mm
Specifications Insulator Material
FEP
Specifications Operating Temperature
-55 to 125 ºC
Specifications Overall Diameter
0.095 in
Specifications Standardnon Standard
Standard Part
Specifications Voltage Rating
12 kVDC
