Silicone Coated FEP Cable with Nomex Jacket - High Voltage 22 AWG
Silicone Coated FEP Cable with Nomex Jacket - High Voltage 22 AWG
SKU:HIG-aab073
High voltage 22 AWG Silicone Coated FEP Cable with Nomex Jacket for superior dielectric bonding and abrasion resistance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Silicone Coated FEP Cable with Nomex Jacket - High Voltage 22 AWG
$29.99
Quantity: 1
Claim Your Seller Account
Silicone Coated FEP Cable with Nomex Jacket - High Voltage 22 AWG
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

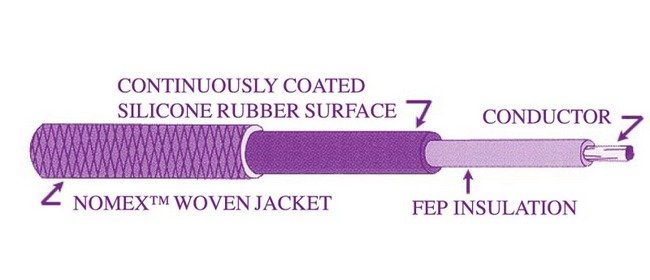

Experience superior dielectric bonding with our Silicone Coated FEP Cable featuring a Nomex woven protective jacket. This high-quality cable offers excellent abrasion resistance, with a conductor gauge of 22 AWG, silver-plated copper strands, and an operating temperature range of -55 to 125°C. Ideal for high voltage applications, it meets standard part requirements and ensures reliable performance in demanding environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Alternate Cable Part Number Equivalents Etched Part Number
178-9122
Alternate Cable Part Number Equivalents Silicone Coated Part Num
178-9277
Cable Wire Properties Etched
No
Cable Wire Properties Jacketed
Yes
Cable Wire Properties Nomex Jacketed Etched Part Number
178-5614
Cable Wire Properties Silicone Coated
Yes
Cable Wire Properties Twisted Pair
No
Cable Wire Properties Twisted Shielded Pair
No
Specifications Conductor Diameter
0.031 in | 0.070 in | 0.800 mm
Specifications Conductor Gauge
22 AWG
Specifications Conductor Material
Copper
Specifications Conductor Plating
Silver Plated
Specifications Conductor Strands
19/34
Specifications Default Color
Natural
Specifications Diameter Over Silicone Coating
0.070 in | 1.780 mm
Specifications Insulator Material
FEP
Specifications Operating Temperature
-55 to 125 ºC
Specifications Overall Diameter
0.070 in
Specifications Standardnon Standard
Standard Part
Specifications Voltage Rating
20 kVDC
