Silicone Hollow Tapered Plug - Light Blue, HTP 13-04

Name: Silicone Hollow Tapered Plug - Light Blue, HTP 13-04
Brand: Custom Fabricating & Supplies
SKU: SIL-68c2d1
Price: 49.99 USD
Availability: OutOfStock

SKU:SIL-68c2d1

Versatile Light Blue Silicone Hollow Tapered Plug for masking large, blind holes. Temperature rating of 600 °F, color-coded, and tapered design for various applications.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

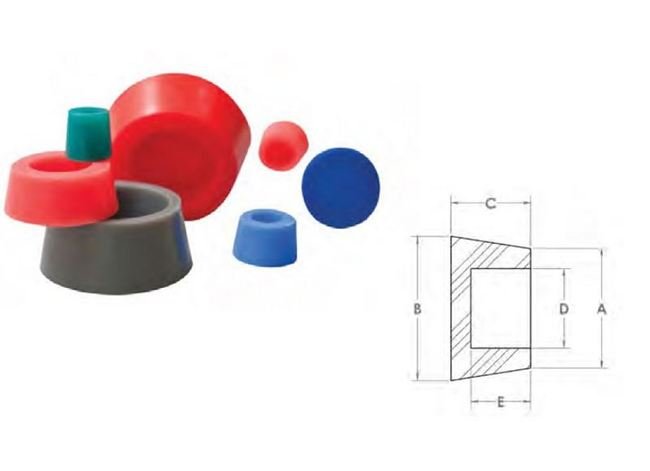

The HTP 13-04 Light Blue Silicone Hollow Tapered Plug is a versatile solution for masking large, blind holes in various industrial applications. With dimensions A (2.281 inches), B (2.687 inches), C (1.000 inch), D (1.531 inch), and E (0.625 inch), this plug offers a tight fit in both threaded and non-threaded holes. Its temperature rating of 600 °F/315 °C makes it suitable for powder coating, E-coating, wet painting, anodizing, and plating processes. The color-coded design ensures easy identification and reusability, while the tapered shape accommodates a range of hole diameters, providing a cost-effective masking solution.

Product Specifications

Specifications Color

Light Blue

Specifications Dimension A

2.281 Inch | 57.94 mm

Specifications Dimension B

2.687 Inch | 68.25 mm

Specifications Dimension C

1.000 Inch | 25.4 mm

Specifications Dimension D

1.531 Inch | 38.89 mm

Specifications Dimension E

0.625 Inch | 15.88 mm

Specifications Features

Temperature Rating 600 Â°F/315 Â°C Hollow Plug Offers a More Economical Option for Masking Large, Blind Holes For use in Both Threaded and Non-threaded Holes - Compresses for a Tight Fit Tapered Design Fits a Variety of Hole Diameters Color Coded for Easy Identification and Reusable Used in Powder Coating, E-Coating, Wet Painting, Anodizing and Plating

Specifications Quantitybag

Silicone Hollow Tapered Plug - Light Blue, HTP 13-04
