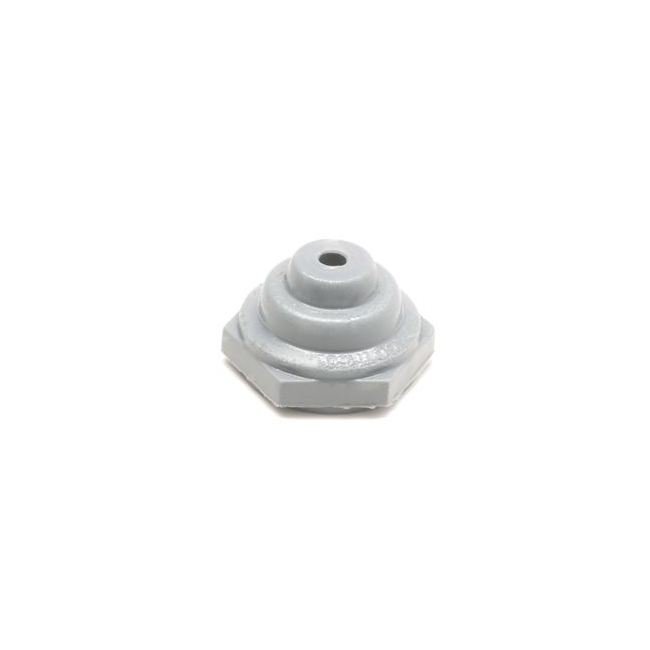

Silicone Toggle Switch Boot - 7/16-32 UN-2B Thread Size

Name: Silicone Toggle Switch Boot - 7/16-32 UN-2B Thread Size
Brand: ZAGO Manufacturing
SKU: SWI-7ef8d6
Price: 24.99 USD
Availability: OutOfStock

SKU:SWI-7ef8d6

Enhance switch protection with ZAGO's Silicone Toggle Switch Boot, resistant to harsh environments. A-A-59588 conforming material with IP68 protection.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Experience unparalleled protection in harsh environments with ZAGO's Silicone Toggle Switch Boot. Designed with a 0.240-inch Maximum Lever Diameter and 0.412-inch Boot Height, this boot is crafted from durable silicone rubber that conforms to A-A-59588 standards. Resistant to fungus, acids, ozone, and more, it offers IP68 enclosure protection and withstands temperatures from -93 to +400 °F. Ideal for aerospace, industrial, marine, medical, and military applications, this boot surpasses industry expectations for switch sealing and protection.

Product Specifications

Specifications Applications

Specifications Base Width Hex

0.625 in

Specifications Boot Height

0.412 in

Specifications Bushing Thread Size Unified

7/16-32 UN-2B

Specifications Color

Black | Gray

Specifications Durometer

Specifications Enclosure Protection

IP68 (Under Normal Conditions)

Specifications External Pressure Range

15 psi

Specifications Internal Pressure Range

15 psi

Specifications Material

Silicone Rubber Conforms to A-A-59588

Specifications Maximum Lever Diameter

0.240 in

Specifications Mounting Nut

Corrosion Resistant - Nickel Plated Brass

Specifications Resistant To

Specifications Temperature Range

-93 to +400 ÂºF

Specifications Thread Type

Unified National Coarse Thread (UNC)

Silicone Toggle Switch Boot - 7/16-32 UN-2B Thread Size
