Single Girder Motor Driven Crane
Single Girder Motor Driven Crane
SKU:REL-b98d26
Reliable 10-ton capacity single girder crane with precision design for industrial use.
Regular price
$11,500.00
Regular price
Sale price
$11,500.00
Unit price
per
Initiate Order
Single Girder Motor Driven Crane
$11,500.00
Quantity: 1
Claim Your Seller Account
Single Girder Motor Driven Crane
$11,500.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

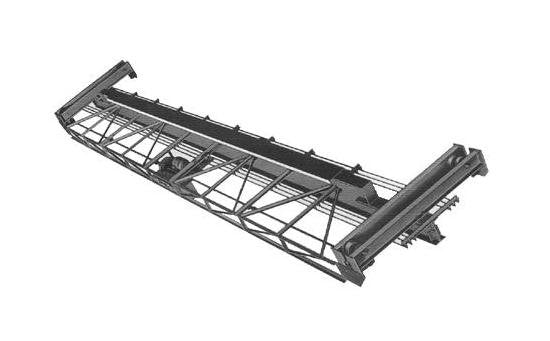

The Single Girder Motor Driven Crane is designed for heavy-duty industrial use, offering a capacity of 10 tons and a robust construction to handle extreme conditions. With precision machined Tru-Tred Wheels, heavy-duty cam follower bearings for smooth operation, and alloy carbon steel wheel gearing, this crane ensures reliable performance. The top running, underhung, single girder design with hand geared or motor-driven trolley and hoist provides versatility for various applications. The adjustable speed control and oil-bath lubricated helical gearing enhance operational efficiency while meeting C.M.A.A. standards.
Product Specifications
Design Details 0
Wheel Bases : Wide range of wheel bases available in each capacity range to meet C.M.A.A. wheel base to span ratio thru 60'-0" of Crane Span. Tru-Tred Wheels : Precision machined from alloy steel with flangeless design to meet the most demanding crane service requirements. Side Roller Guidance : Heavy duty cam follower bearings provide smooth non-skewing crane operation plus reduced crane wheel and runway rail wear. Wheel Bearings : Heavy duty long life rated pre-lubricated and sealed Timken tapered roller wheel bearings designed to take the unavoidable shocks of crane duty. Wheel Gearing : Alloy carbon steel precision spur gearing with large pitch diameter pinion gears. Truck Frames : Heavy fabricated steel jig constructed for true-rolling truck operation. Split truck design allows quick easy crane erection on either open end or closed end runway system.Center Drive : Model HD Helical Center Drives are available to meet your crane bridge drive requirements. Precision oil bath lubricated helical gearing is included for smooth efficient crane operation. A standard "Rightway" foot mounted drive motor is connected to the helical gear reducer thru a flexible coupling providing "positive drive" forward-reverse service. Adjustable electric motor brake is suggested for smooth crane deceleration and final stop. Controls : Single speed heavy duty magnetic reversing control is available with a 115 V control volt- age transformer all internally wired to legended terminal strips mounted in a NEMA-1 enclosure. Adjustable ballast resistor is suggested for smooth crane acceleration and reverse plugging gradual deceleration for smooth stop.
Specifications 0
Runway Collectors
Specifications Bridge Conductors
Bare Copper Wire | Safety Enclosed
Specifications Capacity
10 Tons
Specifications Crane
Hand Geared | Motor Driven | Push Type

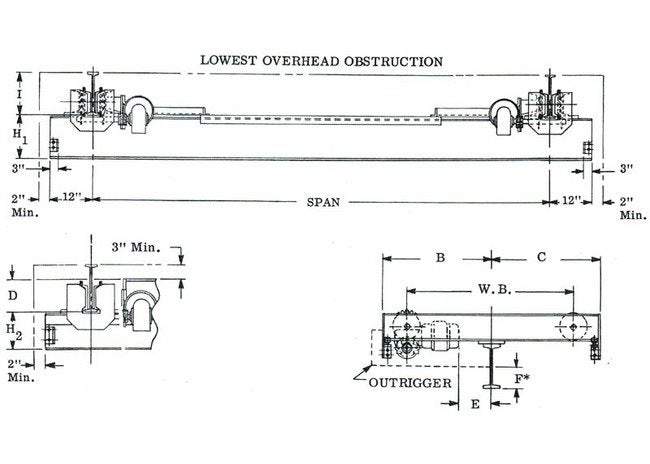

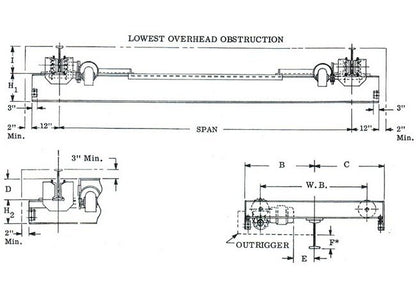

Specifications Dimension A
8 1/2 inches
Specifications Dimension B
4'-7"
Specifications Dimension C
4'-6"
Specifications Dimension D
3/8 inches
Specifications Dimension E
9 inches
Specifications Dimension F
4 5/16 inches
Specifications Dimension G
2 11/16 inches
Specifications Dimension H
1/4 inches
Specifications Dimension I Max
S20 x 66.0
Specifications Dimension I Min
S12 x 31.8
Specifications Dimension J
15/16 inches
Specifications Dimension K
3 3/4 inches
Specifications Dimension L
1 inches
Specifications Dimension M
3 1/2 inches
Specifications Dimension N
6 1/4 inches
Specifications Dimension P
8 inches
Specifications Dimension Q
14 5/8 inches
Specifications Dimension R
1 1/2 inches
Specifications Dimension S
3/8 inches
Specifications Dimension T
3 inches
Specifications Dimension U
5/8 inches
Specifications Dimension V
3 inches
Specifications Dimension W
13/16 inches
Specifications Dimension X
1/2 inches
Specifications Electric
&nbps;
Specifications Gear Ratio
2.29:1
Specifications Hoist Headroom
Hand Chain | Low Headroom | Standard Headroom
Specifications Model
USC
Specifications Net Weight Per Pair
1525 lbs.
Specifications Trolley
Hand Geared | Motor Driven | Push Type
Specifications Type
Top Running | Underhung | Single Girder
Specifications Usage
Extreme Conditions | Indoor Use | Outdoor Use
Specifications Wheel Base
7'-6"
Specifications Wheel Load Per Pair
14500 lbs.
