Single Girder Motor-Driven Crane
Single Girder Motor-Driven Crane
SKU:REL-6ff5c4
Enhance efficiency with our durable Single Girder Motor-Driven Crane, built for indoor or outdoor use under extreme conditions.
Regular price
$8,500.00
Regular price
Sale price
$8,500.00
Unit price
per
Initiate Order
Single Girder Motor-Driven Crane
$8,500.00
Quantity: 1
Claim Your Seller Account
Single Girder Motor-Driven Crane
$8,500.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

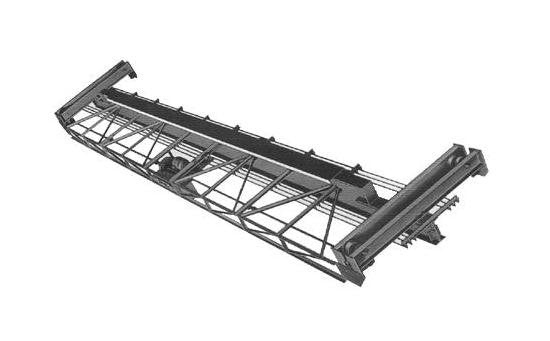

Boost efficiency with our Single Girder Motor-Driven Crane. Featuring a robust USC model with a 10-ton capacity, this crane excels in extreme conditions for indoor and outdoor use. With precise dimensions and heavy-duty components, like Tru-Tred Wheels and Timken bearings, it ensures smooth operation and minimal wear. The design includes a Center Drive for optimal bridge drive, oil-lubricated helical gearing, and a magnetic reversing control system. Ideal for institutional and government procurement needs.
Product Specifications
Design Details 0
Wheel Bases : Wide range of wheel bases available in each capacity range to meet C.M.A.A. wheel base to span ratio thru 60'-0" of Crane Span. Tru-Tred Wheels : Precision machined from alloy steel with flangeless design to meet the most demanding crane service requirements. Side Roller Guidance : Heavy duty cam follower bearings provide smooth non-skewing crane operation plus reduced crane wheel and runway rail wear. Wheel Bearings : Heavy duty long life rated pre-lubricated and sealed Timken tapered roller wheel bearings designed to take the unavoidable shocks of crane duty. Wheel Gearing : Alloy carbon steel precision spur gearing with large pitch diameter pinion gears. Truck Frames : Heavy fabricated steel jig constructed for true-rolling truck operation. Split truck design allows quick easy crane erection on either open end or closed end runway system.Center Drive : Model HD Helical Center Drives are available to meet your crane bridge drive requirements. Precision oil bath lubricated helical gearing is included for smooth efficient crane operation. A standard "Rightway" foot mounted drive motor is connected to the helical gear reducer thru a flexible coupling providing "positive drive" forward-reverse service. Adjustable electric motor brake is suggested for smooth crane deceleration and final stop. Controls : Single speed heavy duty magnetic reversing control is available with a 115 V control volt- age transformer all internally wired to legended terminal strips mounted in a NEMA-1 enclosure. Adjustable ballast resistor is suggested for smooth crane acceleration and reverse plugging gradual deceleration for smooth stop.
Specifications 0
Runway Collectors
Specifications Bridge Conductors
Bare Copper Wire | Safety Enclosed
Specifications Capacity
10 Tons
Specifications Crane
Hand Geared | Motor Driven | Push Type

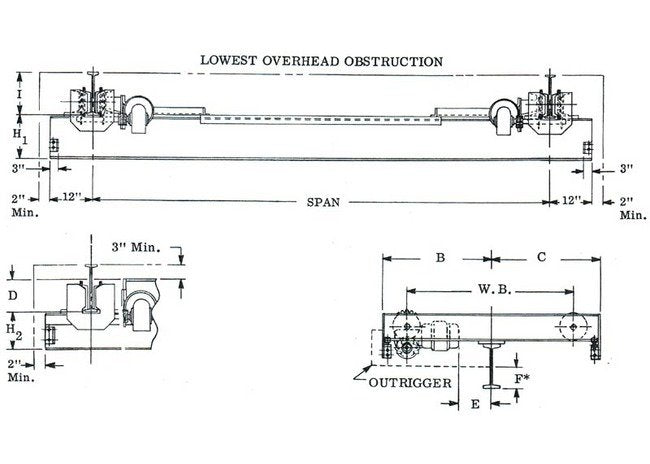

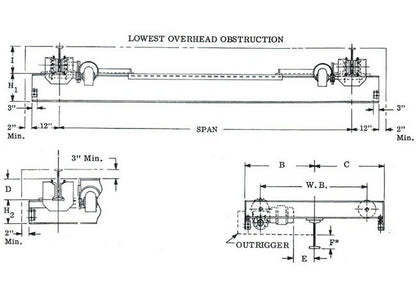

Specifications Dimension A
10 inches
Specifications Dimension B
3'-10"
Specifications Dimension C
3'-9"
Specifications Dimension D
7/8 inches
Specifications Dimension E
10 inches
Specifications Dimension F
5 1/16 inches
Specifications Dimension G
2 11/16 inches
Specifications Dimension H
1/4 inches
Specifications Dimension I Max
S24 x 80
Specifications Dimension I Min
S15 x 42.9
Specifications Dimension J
15/16 inches
Specifications Dimension K
4 inches
Specifications Dimension L
1 inches
Specifications Dimension M
3 1/2 inches
Specifications Dimension N
6 5/8 inches
Specifications Dimension P
8 inches
Specifications Dimension Q
14 1/4 inches
Specifications Dimension R
1 1/2 inches
Specifications Dimension S
3/8 inches
Specifications Dimension T
3 inches
Specifications Dimension U
5/8 inches
Specifications Dimension V
3 inches
Specifications Dimension W
13/16 inches
Specifications Electric
&nbps;
Specifications Gear Ratio
2.65:1
Specifications Hoist Headroom
Hand Chain | Low Headroom | Standard Headroom
Specifications Model
USC
Specifications Net Weight Per Pair
1750 lbs.
Specifications Trolley
Hand Geared | Motor Driven | Push Type
Specifications Type
Top Running | Underhung | Single Girder
Specifications Usage
Extreme Conditions | Indoor Use | Outdoor Use
Specifications Wheel Base
6'-0"
Specifications Wheel Load Per Pair
16000 lbs.
