Single Motor Driven Underhung Crane
Single Motor Driven Underhung Crane
SKU:REL-375929
Reliable and robust Single Motor Driven Underhung Crane for indoor and outdoor use.
Regular price
$8,599.99
Regular price
Sale price
$8,599.99
Unit price
per
Initiate Order
Single Motor Driven Underhung Crane
$8,599.99
Quantity: 1
Claim Your Seller Account
Single Motor Driven Underhung Crane
$8,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

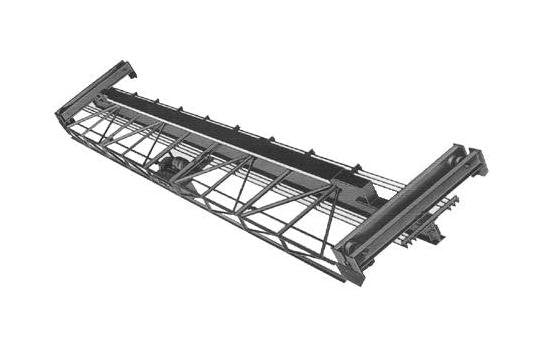

The Single Motor Driven Underhung Crane is a top-of-the-line industrial solution designed for extreme conditions, combining robust construction with precision engineering. With a capacity of 10 tons and a durable design, this crane features flexible wheel bases to accommodate various runway sizes and Tru-Tred Wheels made from alloy steel for longevity. Heavy-duty cam follower bearings ensure smooth crane operation while reducing wear on wheels and rails. Additionally, the precision spur gearing and heavy fabricated steel truck frames guarantee reliable performance in any setting. Ideal for indoor and outdoor use, this crane is perfect for institutions requiring dependable lifting equipment.
Product Specifications
Design Details 0
Wheel Bases : Wide range of wheel bases available in each capacity range to meet C.M.A.A. wheel base to span ratio thru 60'-0" of Crane Span. Tru-Tred Wheels : Precision machined from alloy steel with flangeless design to meet the most demanding crane service requirements. Side Roller Guidance : Heavy duty cam follower bearings provide smooth non-skewing crane operation plus reduced crane wheel and runway rail wear. Wheel Bearings : Heavy duty long life rated pre-lubricated and sealed Timken tapered roller wheel bearings designed to take the unavoidable shocks of crane duty. Wheel Gearing : Alloy carbon steel precision spur gearing with large pitch diameter pinion gears. Truck Frames : Heavy fabricated steel jig constructed for true-rolling truck operation. Split truck design allows quick easy crane erection on either open end or closed end runway system.Center Drive : Model HD Helical Center Drives are available to meet your crane bridge drive requirements. Precision oil bath lubricated helical gearing is included for smooth efficient crane operation. A standard "Rightway" foot mounted drive motor is connected to the helical gear reducer thru a flexible coupling providing "positive drive" forward-reverse service. Adjustable electric motor brake is suggested for smooth crane deceleration and final stop. Controls : Single speed heavy duty magnetic reversing control is available with a 115 V control volt- age transformer all internally wired to legended terminal strips mounted in a NEMA-1 enclosure. Adjustable ballast resistor is suggested for smooth crane acceleration and reverse plugging gradual deceleration for smooth stop.
Specifications 0
Runway Collectors
Specifications Bridge Conductors
Bare Copper Wire | Safety Enclosed
Specifications Capacity
10 Tons
Specifications Crane
Hand Geared | Motor Driven | Push Type

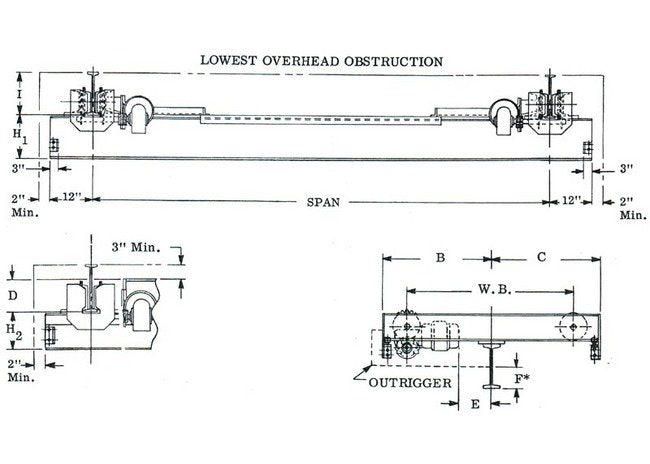

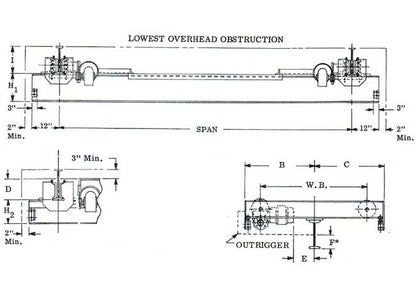

Specifications Dimension A
10 inches
Specifications Dimension B
5'-1"
Specifications Dimension C
5'-0"
Specifications Dimension D
7/8 inches
Specifications Dimension E
10 inches
Specifications Dimension F
5 1/16 inches
Specifications Dimension G
2 11/16 inches
Specifications Dimension H
1/4 inches
Specifications Dimension I Max
S24 x 80
Specifications Dimension I Min
S15 x 42.9
Specifications Dimension J
15/16 inches
Specifications Dimension K
4 inches
Specifications Dimension L
1 inches
Specifications Dimension M
3 1/2 inches
Specifications Dimension N
6 5/8 inches
Specifications Dimension P
8 inches
Specifications Dimension Q
14 1/4 inches
Specifications Dimension R
1 1/2 inches
Specifications Dimension S
3/8 inches
Specifications Dimension T
3 inches
Specifications Dimension U
5/8 inches
Specifications Dimension V
3 inches
Specifications Dimension W
13/16 inches
Specifications Electric
&nbps;
Specifications Gear Ratio
2.65:1
Specifications Hoist Headroom
Hand Chain | Low Headroom | Standard Headroom
Specifications Model
USC
Specifications Net Weight Per Pair
2290 lbs.
Specifications Trolley
Hand Geared | Motor Driven | Push Type
Specifications Type
Top Running | Underhung | Single Girder
Specifications Usage
Extreme Conditions | Indoor Use | Outdoor Use
Specifications Wheel Base
8'-6"
Specifications Wheel Load Per Pair
16000 lbs.
