Single Piston Hand Operated Hydraulic Pumps without Reservoir - P-A Series
Single Piston Hand Operated Hydraulic Pumps without Reservoir - P-A Series
SKU:HYD-5dde2e
Robust Single Piston Hand Hydraulic Pumps for controlled pressure in industrial applications.
Regular price
$630.00
Regular price
Sale price
$630.00
Unit price
per
Initiate Order
Single Piston Hand Operated Hydraulic Pumps without Reservoir - P-A Series
$630.00
Quantity: 1
Claim Your Seller Account
Single Piston Hand Operated Hydraulic Pumps without Reservoir - P-A Series
$630.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

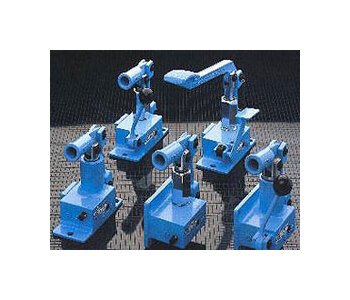

The Single Piston Hand Operated Hydraulic Pumps without Reservoir from the P-A Series are robust, versatile manual pumps designed for use in hydraulic systems with built-in reservoirs. These pumps feature adjustable overload relief valves and manual pressure release valves, ensuring precise control over hydraulic pressure. With a maximum pressure rating of 2500 psi and options for steel or stainless steel construction, these pumps are suitable for various applications including medical, food handling, and corrosive environments. Designed with high-quality materials and available in different mounting configurations, they offer durability and flexibility for institutional and industrial requirements.
Product Specifications
Specifications Adjustable Overload Relief Valve
Yes
Specifications Body Material
Steel
Specifications Inlet Port Size Nptf
3/8
Specifications Lever Load Per 100 Psi
4.9 lb
Specifications List Price
630 USD
Specifications Manual Pressure Release Valve
Yes
Specifications Maximum Pressure Rating
2500 psi
Specifications Mounting
Flange Mounted
Specifications Net Weight
15 lb
Specifications Oil Reservoir
false
Specifications Operating Lever Size
24 in
Specifications Outlet Port Size Nptf
3/8
Specifications Piston
Hard Chrome Plated
Specifications Piston Diameter
1 in
Specifications Release
Cam Release
Specifications Series
P-PL
Specifications Volume Per Stroke
1.18 in³
Technical Information 0
Limited WarrantyAll Star pumps are covered by a limited warranty on materials and workmanship for one year from the date of manufacture. Star will repair or replace at its option any pump in which Star finds manufacturing defects. In order to get warranty service a pump must be returned to the Star plant freight prepaid with a written explanation of the problem.Technical DataLight hydraulic oil is recommended for use with Star pumps. Oils with SUS viscosity of 75 to 150 at 100 degrees Fahrenheit will give satisfactory performance (ISO grade 15, 22, or 32). In an emergency situation when the above oils are not available, use 5 W or 10 W motor oil or automatic transmission fluid.All exposed surfaces of standard Star pumps are painted with one coat of industrial quality paint. Pumps painted with special colors with two coat finishes, or with prime coat only, and pumps with special plated or polished parts, are also available.
