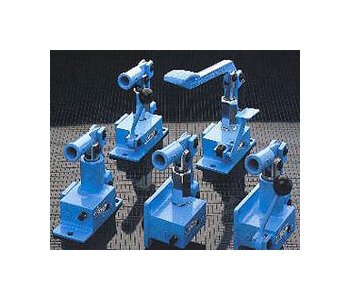

Single Piston Hydraulic Pump - P-LR Series
Single Piston Hydraulic Pump - P-LR Series
SKU:HYD-fe821d
Versatile Single Piston Hydraulic Pump with adjustable overload relief and manual pressure release valves. Ideal for industrial use.
Regular price
$487.00
Regular price
Sale price
$487.00
Unit price
per
Initiate Order
Single Piston Hydraulic Pump - P-LR Series
$487.00
Quantity: 1
Claim Your Seller Account
Single Piston Hydraulic Pump - P-LR Series
$487.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Single Piston Hydraulic Pump - P-LR Series offers a robust, versatile solution for hydraulic systems without reservoirs. With adjustable overload relief and manual pressure release valves, this pump delivers pressures up to 1000 psi. Featuring a steel body with a hard chrome-plated piston, it is designed for durability and reliability. Options include different mounting styles, lever types, and pressure release mechanisms, ensuring flexibility for various applications. Ideal for industrial use, the pump is compatible with hydraulic oils within the recommended viscosity range, accompanied by a one-year limited warranty for quality assurance.
Product Specifications
Specifications Adjustable Overload Relief Valve
Yes
Specifications Body Material
Steel
Specifications Inlet Port Size Nptf
3/8
Specifications Lever Load Per 100 Psi
11.0 lb
Specifications List Price
487 USD
Specifications Manual Pressure Release Valve
Yes
Specifications Maximum Pressure Rating
1000 psi
Specifications Mounting
Base Mounted
Specifications Net Weight
16 lb
Specifications Oil Reservoir
false
Specifications Operating Lever Size
24 in
Specifications Outlet Port Size Nptf
3/8
Specifications Piston
Hard Chrome Plated
Specifications Piston Diameter
1 1/2 in
Specifications Release
Screw Release
Specifications Series
P-LR
Specifications Volume Per Stroke
2.65 in³
Technical Information 0
Limited WarrantyAll Star pumps are covered by a limited warranty on materials and workmanship for one year from the date of manufacture. Star will repair or replace at its option any pump in which Star finds manufacturing defects. In order to get warranty service a pump must be returned to the Star plant freight prepaid with a written explanation of the problem.Technical DataLight hydraulic oil is recommended for use with Star pumps. Oils with SUS viscosity of 75 to 150 at 100 degrees Fahrenheit will give satisfactory performance (ISO grade 15, 22, or 32). In an emergency situation when the above oils are not available, use 5 W or 10 W motor oil or automatic transmission fluid.All exposed surfaces of standard Star pumps are painted with one coat of industrial quality paint. Pumps painted with special colors with two coat finishes, or with prime coat only, and pumps with special plated or polished parts, are also available.
