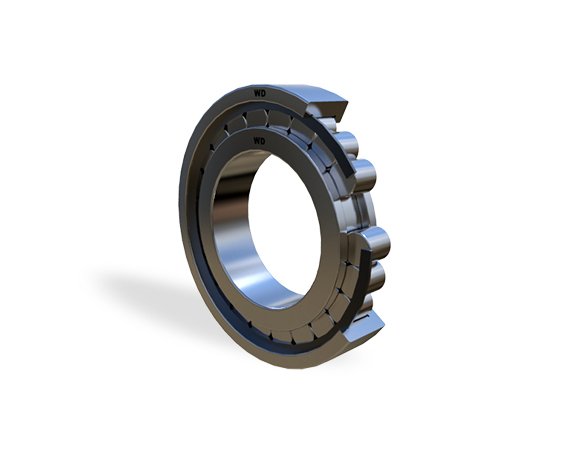

Single Row Full Complement Cylindrical Roller Bearings

Name: Single Row Full Complement Cylindrical Roller Bearings
Brand: WD Bearings
SKU: CYL-4c88ac
Price: 49.99 USD
Availability: OutOfStock

SKU:CYL-4c88ac

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Product Specifications

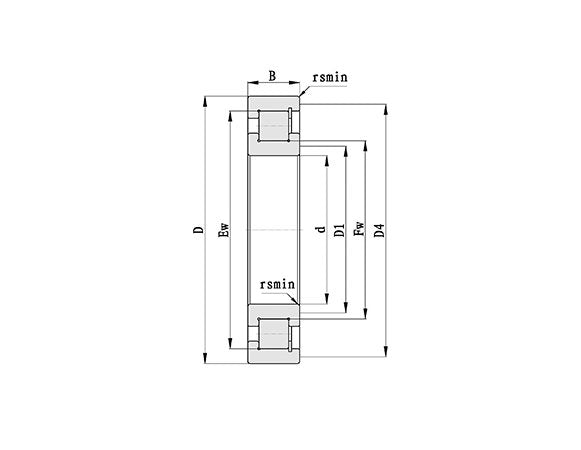

Dimensions Bore Diameter

20 mm

Dimensions Dimension Ew

41.47 mm

Dimensions Dimension Fw

25.47 mm

Dimensions Minimum Dimension R

1 mm

Dimensions Outside Diameter

47 mm

Dimensions Overall Bearing Width

18 mm

Load Rating Dynamic Cr Load Rating

45.5 kN

Load Rating Static Cor Load Rating

37.5 kN

Specifications Limiting Speed

9700 rpm

Specifications Mass

0.16 kg

Single Row Full Complement Cylindrical Roller Bearings
