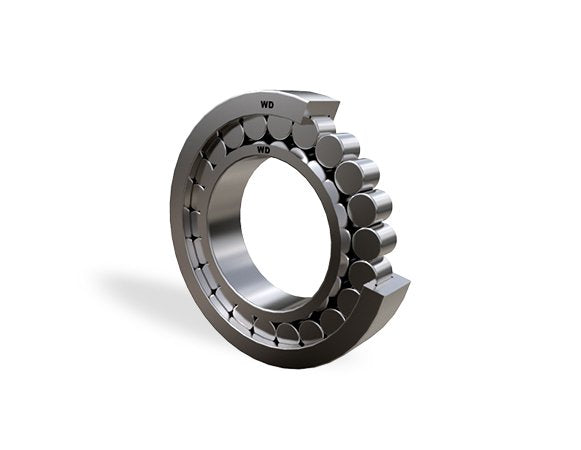

Single Row Full Complement Cylindrical Roller Bearings

Name: Single Row Full Complement Cylindrical Roller Bearings
Brand: WD Bearings
SKU: CYL-13b58f
Price: 49.99 USD
Availability: OutOfStock

SKU:CYL-13b58f

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Product Specifications

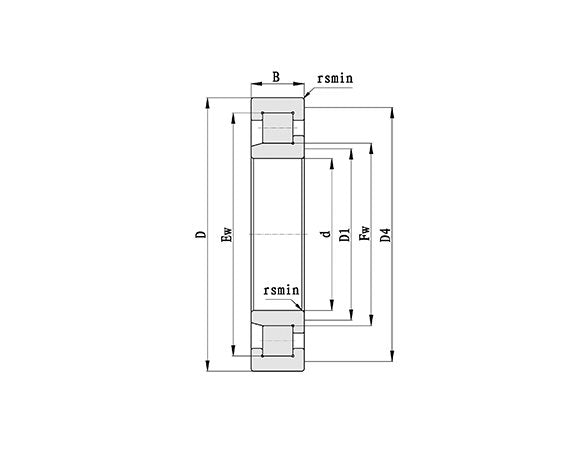

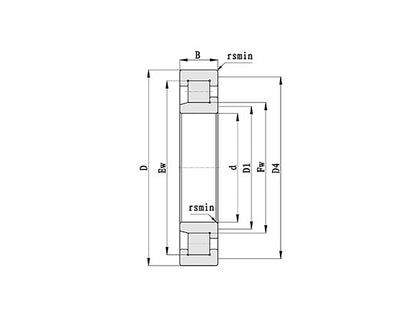

Dimensions Bore Diameter

45 mm

Dimensions Dimension Ew

88.1 mm

Dimensions Dimension Fw

56.1 mm

Dimensions Minimum Dimension R

1.5 mm

Dimensions Outside Diameter

100 mm

Dimensions Overall Bearing Width

36 mm

Load Rating Dynamic Cr Load Rating

171 kN

Load Rating Static Cor Load Rating

160 kN

Specifications Limiting Speed

9700 rpm

Specifications Mass

1.34 kg
