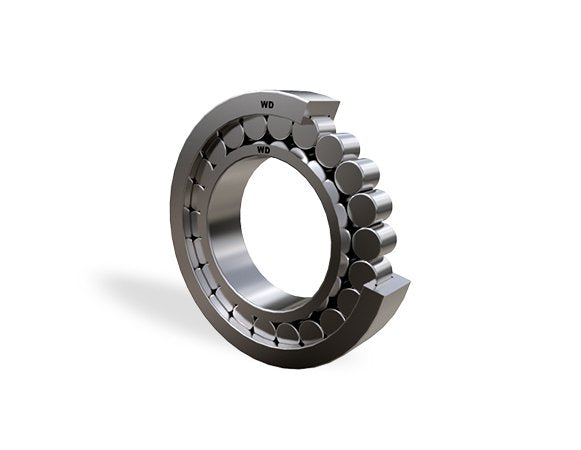

Single Row Full Complement Cylindrical Roller Bearings

Name: Single Row Full Complement Cylindrical Roller Bearings
Brand: WD Bearings
SKU: CYL-45d5aa
Price: 49.99 USD
Availability: OutOfStock

SKU:CYL-45d5aa

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Product Specifications

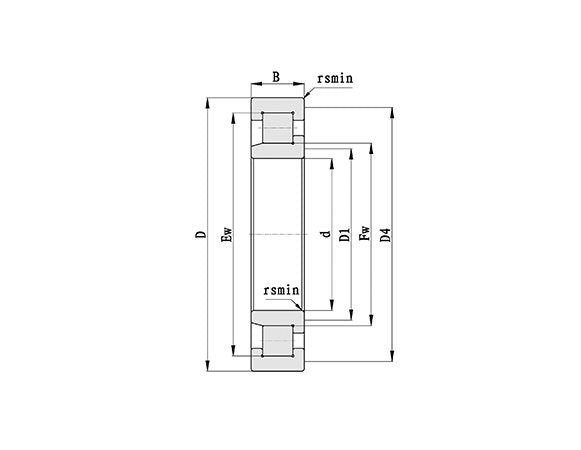

Dimensions Bore Diameter

40 mm

Dimensions Dimension Ew

83.12 mm

Dimensions Dimension Fw

51.12 mm

Dimensions Minimum Dimension R

1.5 mm

Dimensions Outside Diameter

90 mm

Dimensions Overall Bearing Width

33 mm

Load Rating Dynamic Cr Load Rating

160 kN

Load Rating Static Cor Load Rating

144 kN

Specifications Limiting Speed

10800 rpm

Specifications Mass

1 kg

Single Row Full Complement Cylindrical Roller Bearings
