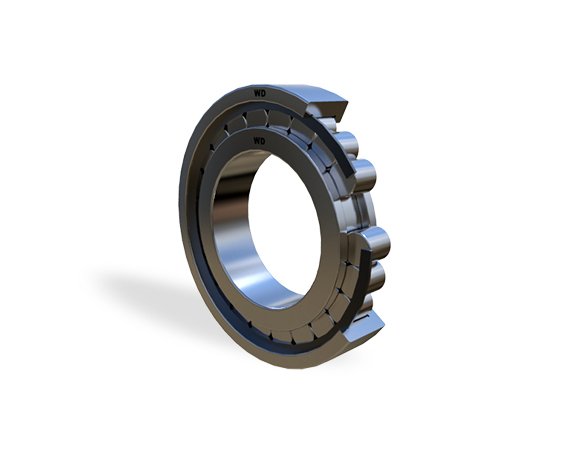

Single Row Full Complement Cylindrical Roller Bearings

Name: Single Row Full Complement Cylindrical Roller Bearings
Brand: WD Bearings
SKU: CYL-f1b5f7
Price: 49.99 USD
Availability: OutOfStock

SKU:CYL-f1b5f7

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

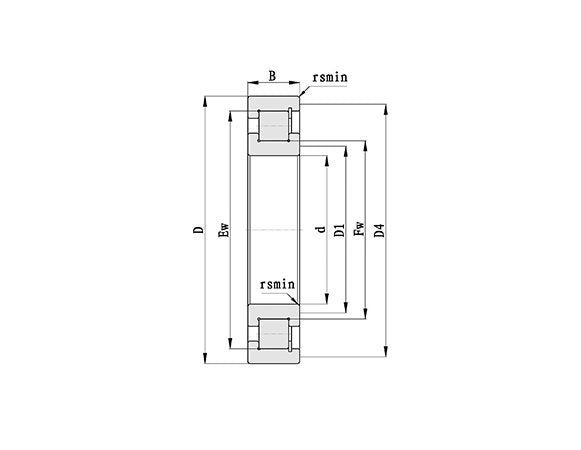

Product Specifications

Dimensions Bore Diameter

65 mm

Dimensions Dimension Ew

106.25 mm

Dimensions Dimension Fw

76.25 mm

Dimensions Minimum Dimension R

1.5 mm

Dimensions Outside Diameter

120 mm

Dimensions Overall Bearing Width

31 mm

Load Rating Dynamic Cr Load Rating

198 kN

Load Rating Static Cor Load Rating

214 kN

Specifications Limiting Speed

3500 rpm

Specifications Mass

1.57 kg

Single Row Full Complement Cylindrical Roller Bearings
