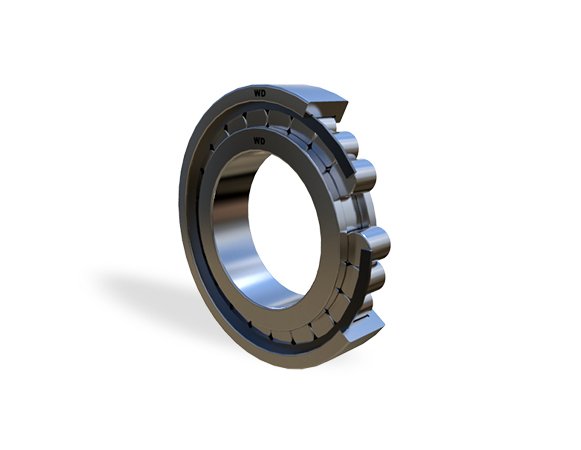

Single Row Full Complement Cylindrical Roller Bearings

Name: Single Row Full Complement Cylindrical Roller Bearings
Brand: WD Bearings
SKU: CYL-e8196a
Price: 49.99 USD
Availability: OutOfStock

SKU:CYL-e8196a

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

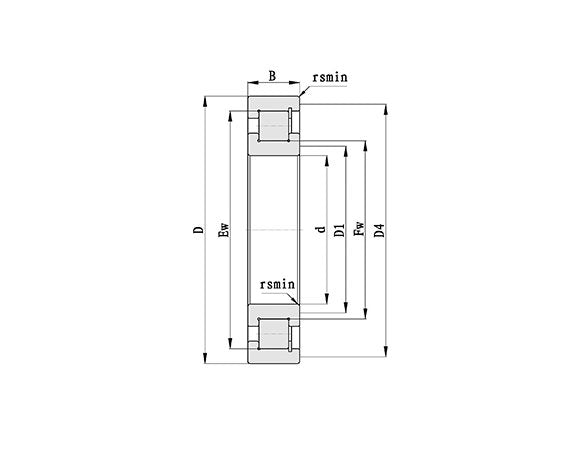

Product Specifications

Dimensions Bore Diameter

95 mm

Dimensions Dimension Ew

155 mm

Dimensions Dimension Fw

115 mm

Dimensions Minimum Dimension R

2.1 mm

Dimensions Outside Diameter

170 mm

Dimensions Overall Bearing Width

43 mm

Load Rating Dynamic Cr Load Rating

340 kN

Load Rating Static Cor Load Rating

435 kN

Specifications Limiting Speed

2450 rpm

Specifications Mass

4.17 kg

Single Row Full Complement Cylindrical Roller Bearings
