Single Vertical Sheave Assembly
Single Vertical Sheave Assembly
SKU:RIG-023f08
Heavy-duty Single Vertical Sheave Assembly for efficient lifting and pulling operations. Model SVS with 6000 lbs capacity. Reliable and versatile control options.
Regular price
$269.99
Regular price
Sale price
$269.99
Unit price
per
Initiate Order
Single Vertical Sheave Assembly
$269.99
Quantity: 1
Claim Your Seller Account
Single Vertical Sheave Assembly
$269.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Single Vertical Sheave Assembly is a heavy-duty solution designed for lifting and pulling applications, with a capacity of 6000 lbs. It features a Model SVS design, suitable for wire rope diameters of 1/2 inches. This assembly ensures efficient operations with dimensions tailored for optimal performance. Equipped with an electrical brake and various control options, it offers versatility and reliability for demanding tasks. Ideal for Rightway Winches, this assembly is a crucial addition to your electric winch setup.
Product Specifications
Specifications Capacity
6000 lbs.
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton

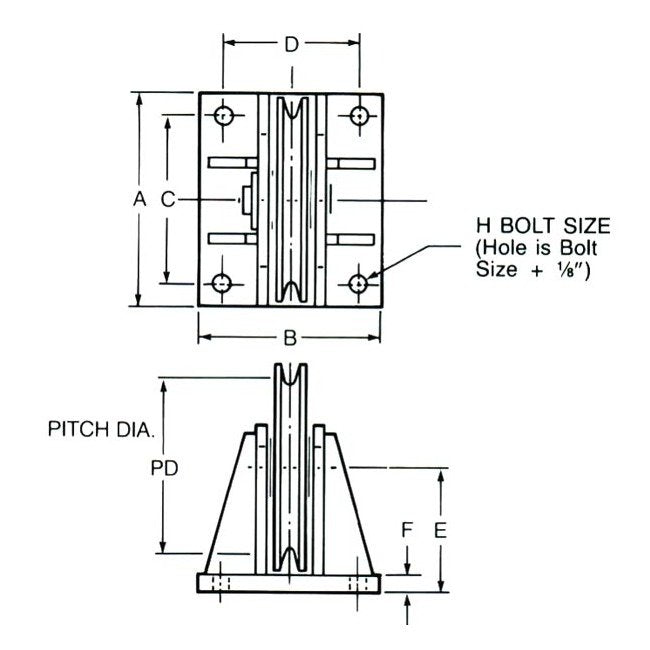

Specifications Dimension A
12 3/4 inches
Specifications Dimension B
9 3/4 inches
Specifications Dimension C
10 inches
Specifications Dimension D
7 inches
Specifications Dimension E
6 1/2 inches
Specifications Dimension F
3/4 inches
Specifications Dimension H
1 inches
Specifications Model
SVS
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Pitch Diameter
8 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Diameter
1/2 inches
