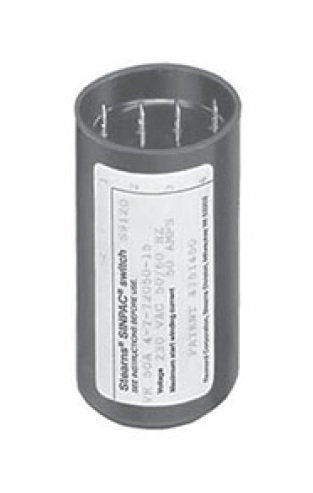

SINPAC® 2CV Series 230VAC Switch for Capacitor Start Motor
SINPAC® 2CV Series 230VAC Switch for Capacitor Start Motor
SKU:MOT-4680f0
Enhance motor performance with the reliable SINPAC® 2CV Series 230VAC Switch. Silent operation, high durability, and precise voltage sensing for optimal efficiency.
Regular price
$350.98
Regular price
Sale price
$350.98
Unit price
per
Initiate Order
SINPAC® 2CV Series 230VAC Switch for Capacitor Start Motor
$350.98
Quantity: 1
Claim Your Seller Account
SINPAC® 2CV Series 230VAC Switch for Capacitor Start Motor
$350.98
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SINPAC® 2CV Series Switch is designed for use with 230V capacitor start motors, providing precise voltage sensing for optimal motor performance. This solid-state switch features voltage detection circuitry to minimize electrical stress, ensuring reliable operation. With a permissible max start capacitor current of 50A and certifications from CSA and UL, this switch offers silent operation, high cycling durability, and a wide operating temperature range of -40°C to 65°C. Upgrade your motor system with the efficiency and quality of SINPAC® switches.
Product Specifications
Additional Features 0

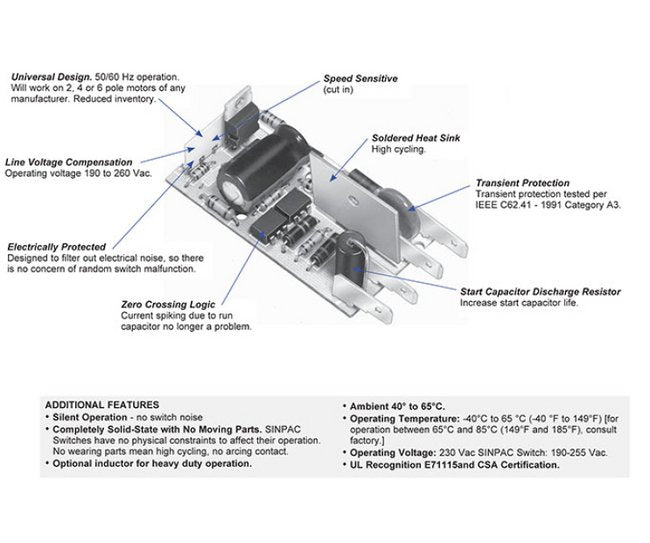

Silent Operation - no switch noise Completely Solid-State with No Moving Parts. SINPAC® Switches have no physical constraints to affect their operation. No wearing parts mean high cycling, no arcing contact. Optional inductor for heavy duty operation. Ambient 40 ºC to 65 ºC. Operating Temperature: -40 ºC to 65 ºC (-40 ºF to 149 ºF) [for operation between 65 ºC and 85 ºC (149 ºF and 185 ºF), consult factory.] Operating Voltage: 230 VAC SINPAC® Switch: 190-255 VAC. UL Recognition E71115 and CSA Certification.
Specifications Certification
CSA | E71115 | UL
Specifications List Price
350.98 USD
Specifications Package Style
15
Specifications Part Number
4-7-22050-15-U01
Specifications Start Circuit Voltage
230 V
Specifications Switch Rating Permissible Max Start Capacitor Cur
50 A
Specifications Cut In Voltage
70 V
Specifications Cut Out Voltage
310 V
Specifications Full Load Motor Current Rating 230 Volts
25 A
Specifications Maximum Motor
5 hp
