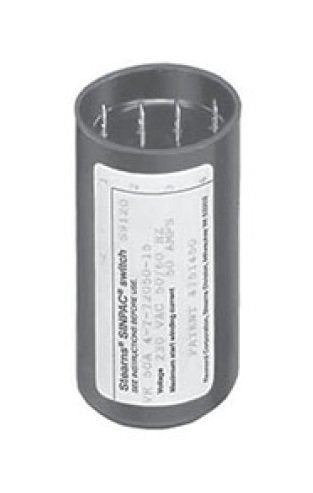

SINPAC® 2CV Series 230VAC Switch for Capacitor Start Motors
SINPAC® 2CV Series 230VAC Switch for Capacitor Start Motors
SKU:MOT-7595c2
Enhance motor performance with the SINPAC® 2CV 230VAC Switch - reliable, durable, and compliant with CSA and UL standards.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
SINPAC® 2CV Series 230VAC Switch for Capacitor Start Motors
$79.99
Quantity: 1
Claim Your Seller Account
SINPAC® 2CV Series 230VAC Switch for Capacitor Start Motors
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SINPAC® 2CV Series Switch is designed for 230VAC Capacitor Start Motors, offering precise voltage sensing to extract speed data efficiently. With silent operation and solid-state construction, this switch eliminates switch noise and ensures high cycling durability. It comes with certifications from CSA and UL, meeting stringent industry standards for reliable performance. The innovative voltage detection circuitry minimizes electrical stress, making it ideal for both consumer and institutional use.
Product Specifications
Additional Features 0

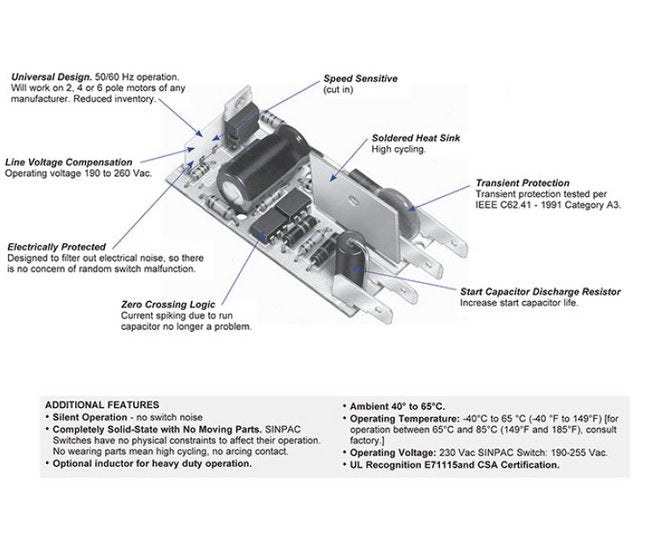

Silent Operation - no switch noise Completely Solid-State with No Moving Parts. SINPAC® Switches have no physical constraints to affect their operation. No wearing parts mean high cycling, no arcing contact. Optional inductor for heavy duty operation. Ambient 40 ºC to 65 ºC. Operating Temperature: -40 ºC to 65 ºC (-40 ºF to 149 ºF) [for operation between 65 ºC and 85 ºC (149 ºF and 185 ºF), consult factory.] Operating Voltage: 230 VAC SINPAC® Switch: 190-255 VAC. UL Recognition E71115 and CSA Certification.
Specifications Certification
CSA | E71115 | UL
Specifications List Price
0.0 USD
Specifications Package Style
15
Specifications Part Number
4-7-22035-15-U01
Specifications Start Circuit Voltage
230 V
Specifications Switch Rating Permissible Max Start Capacitor Cur
35 A

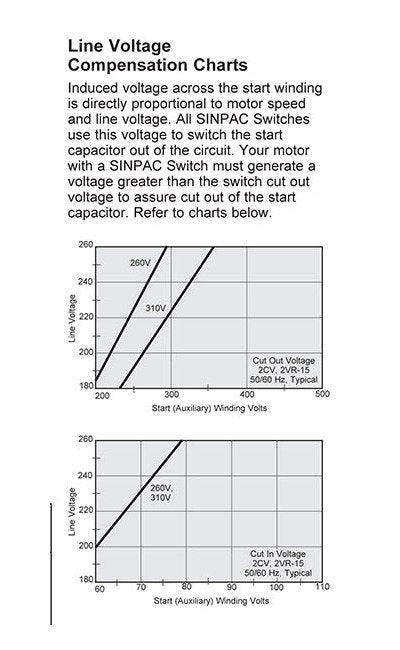

Specifications Cut In Voltage
70 V
Specifications Cut Out Voltage
310 V
Specifications Full Load Motor Current Rating 230 Volts
17 A
Specifications Maximum Motor
3 hp
