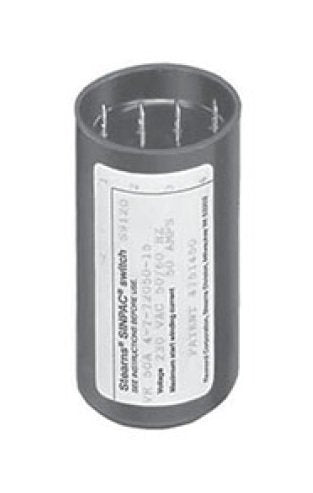

The SINPAC® 2CV Series Switch is designed for use with 230VAC capacitor start motors, providing precise voltage sensing for optimal motor performance. This electronic switch features voltage detection circuitry to minimize electrical stress, ensuring seamless operation. With a silent, solid-state design and a permissible max start capacitor current of 35A, this switch offers reliable and durable performance. Operating within a wide temperature range and UL and CSA certified, it meets stringent industry standards for quality and safety.
Product Specifications
Additional Features 0

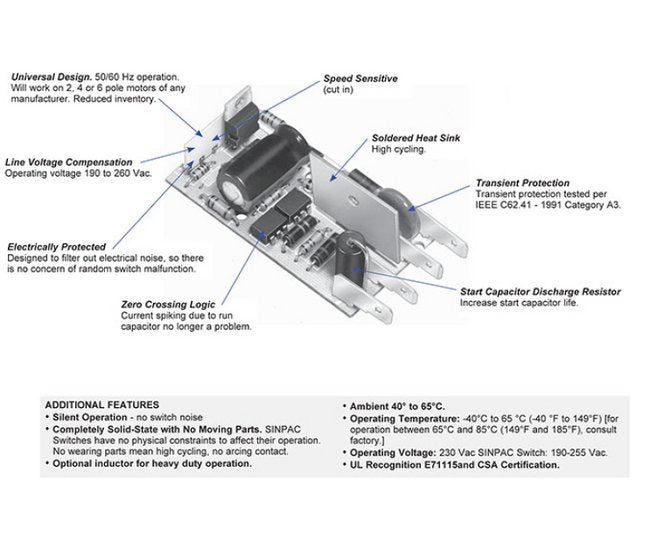

Silent Operation - no switch noiseCompletely Solid-State with No Moving Parts. SINPAC® Switches have no physical constraints to affect their operation. No wearing parts mean high cycling, no arcing contact.Optional inductor for heavy duty operation.Ambient 40 ºC to 65 ºC.Operating Temperature: -40 ºC to 65 ºC (-40 ºF to 149 ºF) [for operation between 65 ºC and 85 ºC (149 ºF and 185 ºF), consult factory.]Operating Voltage: 230 VAC SINPAC® Switch: 190-255 VAC.UL Recognition E71115 and CSA Certification.
Specifications Certification
CSA | E71115 | UL
Specifications List Price
144.00 USD
Specifications Package Style
15
Specifications Part Number
4-7-22035-15-UC1
Specifications Start Circuit Voltage
230 V
Specifications Switch Rating Permissible Max Start Capacitor Cur
35 A
Specifications Cut In Voltage
70 V
Specifications Cut Out Voltage
260 V
Specifications Full Load Motor Current Rating 230 Volts
17 A
Specifications Maximum Motor
3 hp
