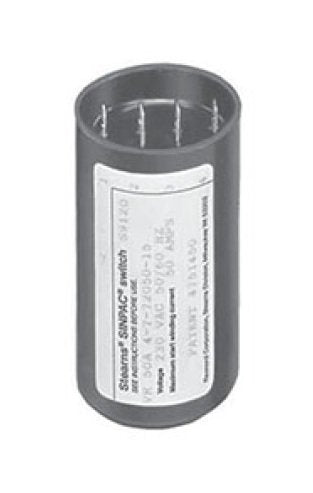

The SINPAC® 2VR Series Switch is designed for dual voltage capacitor start/capacitor run motors, ensuring optimal performance and efficiency. This switch monitors voltage levels to regulate motor speed, offering seamless operation and prolonging motor lifespan. With a solid-state construction and voltage detection circuitry, this switch guarantees silent operation, high cycling capability, and minimal electrical stress. Certified by CSA and UL, it meets rigorous industry standards for reliability and safety.
Product Specifications
Additional Features 0

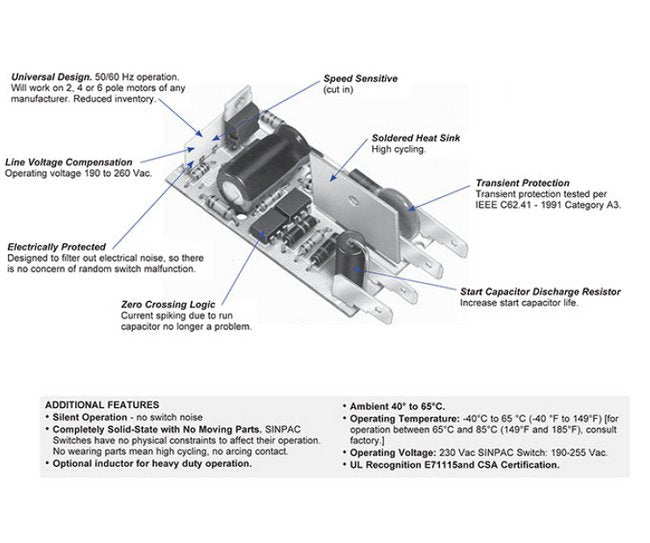

Silent Operation - no switch noise Completely Solid-State with No Moving Parts. SINPAC® Switches have no physical constraints to affect their operation. No wearing parts mean high cycling, no arcing contact. Optional inductor for heavy duty operation. Ambient 40 ºC to 65 ºC. Operating Temperature: -40 ºC to 65 ºC (-40 ºF to 149 ºF) [for operation between 65 ºC and 85 ºC (149 ºF and 185 ºF), consult factory.] Operating Voltage: 230 VAC SINPAC® Switch: 190-255 VAC. UL Recognition E71115 and CSA Certification.
Specifications Certification
CSA | E71115 | UL
Specifications List Price
0.0 USD
Specifications Package Style
15
Specifications Part Number
4-7-72035-15-UC1
Specifications Start Circuit Voltage
230 V
Specifications Switch Rating Permissible Max Start Capacitor Cur
35 A

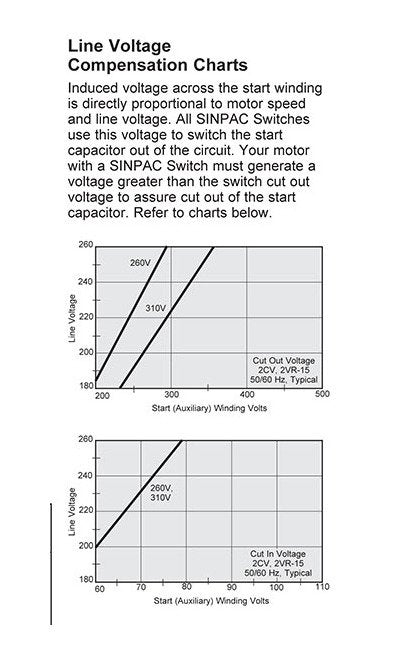

Specifications Cut In Voltage
70 V
Specifications Cut Out Voltage
260 V
Specifications Full Load Motor Current Rating 230 Volts
17 A
Specifications Maximum Motor
3 hp
