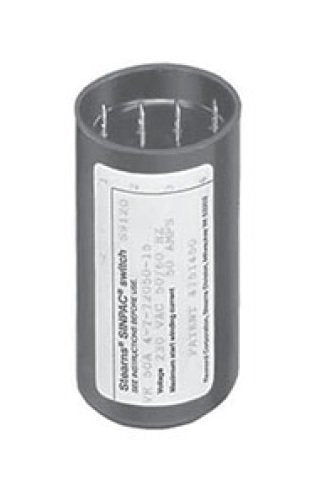

SINPAC® Capacitor Start Motor Switch for 230V
SINPAC® Capacitor Start Motor Switch for 230V
SKU:MOT-f74e53
Efficient, durable, and certified SINPAC® switch for 230V motors.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
SINPAC® Capacitor Start Motor Switch for 230V
$129.99
Quantity: 1
Claim Your Seller Account
SINPAC® Capacitor Start Motor Switch for 230V
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SINPAC® Capacitor Start Motor Switch is designed for 230V motors, offering efficient voltage sensing for speed data extraction. With a solid-state design, it ensures silent operation and high cycling durability. This switch features voltage detection circuitry to minimize electrical stress, meeting CSA, UL certifications, making it ideal for applications requiring reliable operation and minimal maintenance.
Product Specifications
Additional Features 0

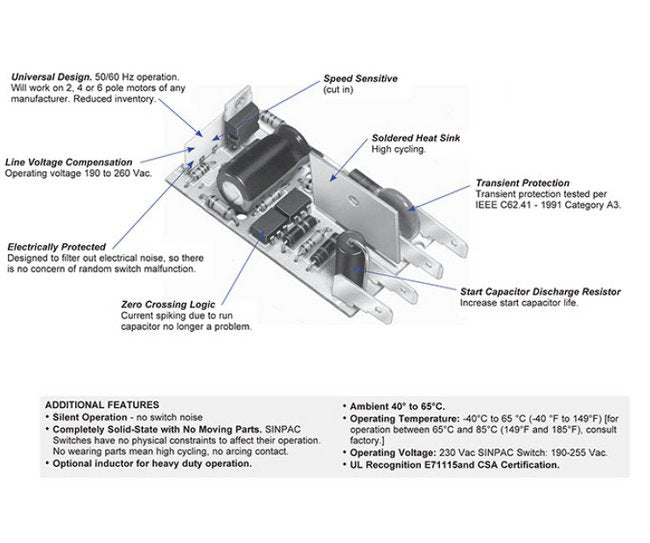

Silent Operation - no switch noise Completely Solid-State with No Moving Parts. SINPAC® Switches have no physical constraints to affect their operation. No wearing parts mean high cycling, no arcing contact. Optional inductor for heavy duty operation. Ambient 40 ºC to 65 ºC. Operating Temperature: -40 ºC to 65 ºC (-40 ºF to 149 ºF) [for operation between 65 ºC and 85 ºC (149 ºF and 185 ºF), consult factory.] Operating Voltage: 230 VAC SINPAC® Switch: 190-255 VAC. UL Recognition E71115 and CSA Certification.
Specifications Certification
CSA | E71115 | UL
Specifications List Price
0.0 USD
Specifications Package Style
15
Specifications Part Number
4-7-22050-15-UC1
Specifications Start Circuit Voltage
230 V
Specifications Switch Rating Permissible Max Start Capacitor Cur
50 A

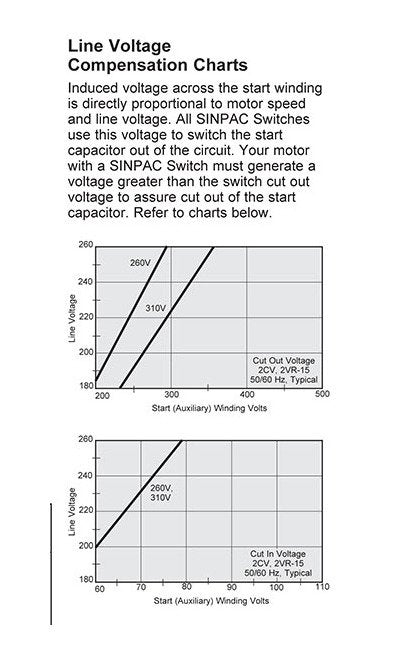

Specifications Cut In Voltage
70 V
Specifications Cut Out Voltage
260 V
Specifications Full Load Motor Current Rating 230 Volts
25 A
Specifications Maximum Motor
5 hp
