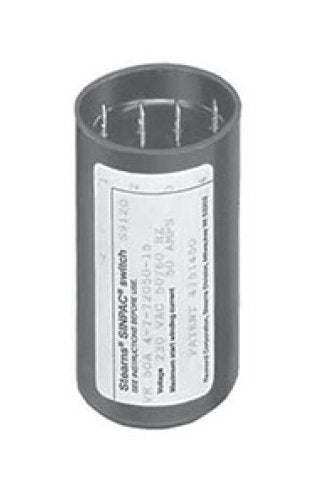

SINPAC® Dual Voltage Motor Switch - 230VAC
SINPAC® Dual Voltage Motor Switch - 230VAC
SKU:MOT-e21512
Experience optimized motor performance with the SINPAC® Dual Voltage Motor Switch - silent, solid-state design for enhanced efficiency.
Regular price
$281.85
Regular price
Sale price
$281.85
Unit price
per
Initiate Order
SINPAC® Dual Voltage Motor Switch - 230VAC
$281.85
Quantity: 1
Claim Your Seller Account
SINPAC® Dual Voltage Motor Switch - 230VAC
$281.85
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your motor's performance with the SINPAC® Dual Voltage Motor Switch designed for capacitor start/capacitor run motors. This switch leverages continuous voltage sensing technology to optimize motor speed and efficiency by intelligently managing the start circuit. With features like Silent Operation, Completely Solid-State design, and a wide operating temperature range, this switch ensures reliable and durable performance. Certified by CSA and UL, it meets stringent quality and safety standards for seamless integration into various industrial applications.
Product Specifications
Additional Features 0

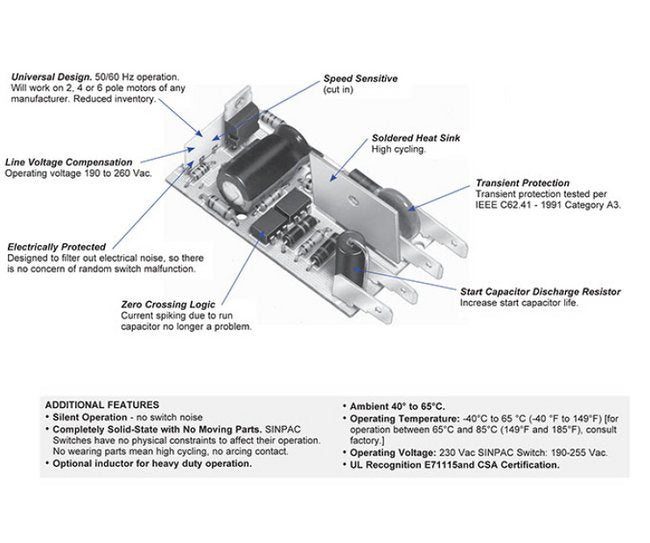

Silent Operation - no switch noise Completely Solid-State with No Moving Parts. SINPAC® Switches have no physical constraints to affect their operation. No wearing parts mean high cycling, no arcing contact. Optional inductor for heavy duty operation. Ambient 40 ºC to 65 ºC. Operating Temperature: -40 ºC to 65 ºC (-40 ºF to 149 ºF) [for operation between 65 ºC and 85 ºC (149 ºF and 185 ºF), consult factory.] Operating Voltage: 230 VAC SINPAC® Switch: 190-255 VAC. UL Recognition E71115 and CSA Certification.
Specifications Certification
CSA | E71115 | UL
Specifications List Price
281.85 USD
Specifications Package Style
15
Specifications Part Number
4-7-72050-15-U01
Specifications Start Circuit Voltage
230 V
Specifications Switch Rating Permissible Max Start Capacitor Cur
50 A

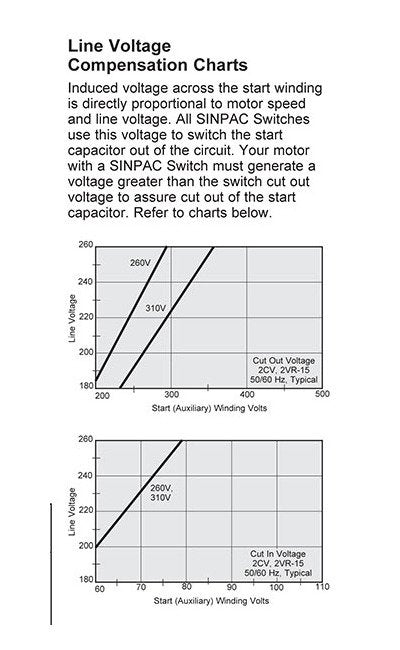

Specifications Cut In Voltage
70 V
Specifications Cut Out Voltage
310 V
Specifications Full Load Motor Current Rating 230 Volts
25 A
Specifications Maximum Motor
5 hp
