SINPAC® Solid State Switch - Dual Voltage Capacitor Start/Run Motor
SINPAC® Solid State Switch - Dual Voltage Capacitor Start/Run Motor
SKU:MOT-a3b16e
Enhance motor performance with SINPAC® Solid State Switch for Dual Voltage Capacitor Start/Run Motors
Regular price
$281.85
Regular price
Sale price
$281.85
Unit price
per
Initiate Order
SINPAC® Solid State Switch - Dual Voltage Capacitor Start/Run Motor
$281.85
Quantity: 1
Claim Your Seller Account
SINPAC® Solid State Switch - Dual Voltage Capacitor Start/Run Motor
$281.85
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

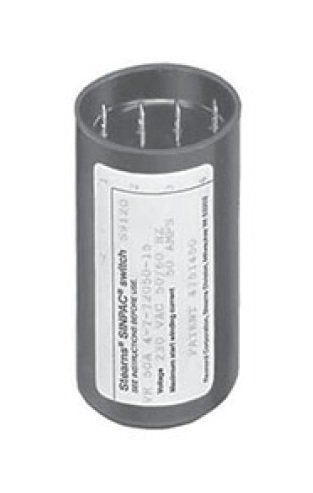

The SINPAC® 2VR Series Switch is designed for 230 Voltage (VAC) Dual Voltage Capacitor Start/Capacitor Run Motors, offering precise voltage sensing for optimal motor performance. With a Typical Maximum Motor of 5 hp and a Full Load Motor Current Rating of 25 A at 230 Volts, this switch ensures efficient operation. Featuring silent operation and a solid-state design, it eliminates moving parts and arcing contacts, guaranteeing high cycling reliability. The switch's voltage detection circuitry minimizes electrical stress, meeting stringent industry standards such as CSA, UL, and more.
Product Specifications
Additional Features 0

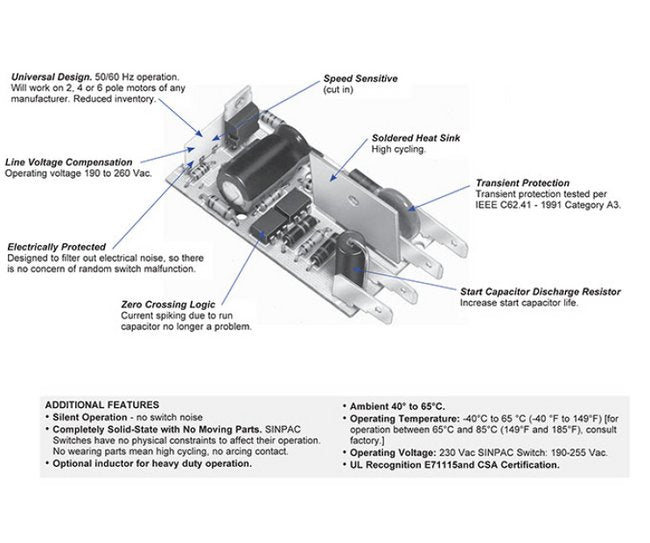

Silent Operation - no switch noise Completely Solid-State with No Moving Parts. SINPAC® Switches have no physical constraints to affect their operation. No wearing parts mean high cycling, no arcing contact. Optional inductor for heavy duty operation. Ambient 40 ºC to 65 ºC. Operating Temperature: -40 ºC to 65 ºC (-40 ºF to 149 ºF) [for operation between 65 ºC and 85 ºC (149 ºF and 185 ºF), consult factory.] Operating Voltage: 230 VAC SINPAC® Switch: 190-255 VAC. UL Recognition E71115 and CSA Certification.
Specifications Certification
CSA | E71115 | UL
Specifications List Price
281.85 USD
Specifications Package Style
15
Specifications Part Number
4-7-72050-15-UC1
Specifications Start Circuit Voltage
230 V
Specifications Switch Rating Permissible Max Start Capacitor Cur
50 A

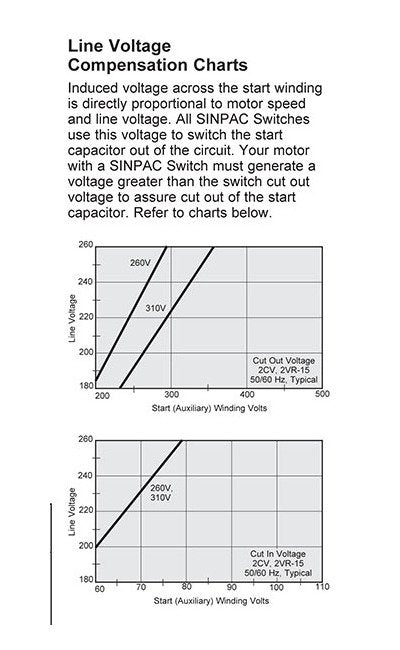

Specifications Cut In Voltage
70 V
Specifications Cut Out Voltage
260 V
Specifications Full Load Motor Current Rating 230 Volts
25 A
Specifications Maximum Motor
5 hp
