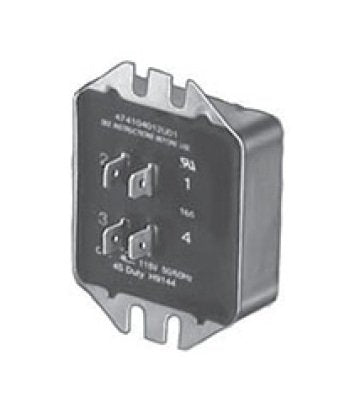

Upgrade your motor's performance with the SINPAC® VR-50-130 Solid State Switch. Designed for capacitor start/capacitor run motors, this switch features advanced circuitry to handle current transients and voltage variations during startup. With a silent operation, environmentally protected design, and solid-state construction, it ensures reliable performance in diverse conditions. Operating within a wide temperature range and compatible with dual voltage motors, this switch is a durable and efficient choice for motor control applications.
Product Specifications

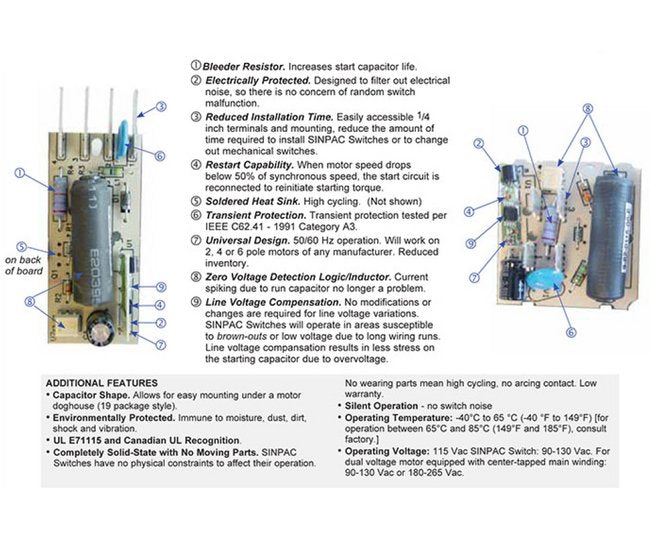

Additional Features 0
Capacitor Shape: Allows for easy mounting under a motor doghouse (19 package style). Environmentally Protected: Immune to moisture, dust, dirt, shock and vibration. UL E71115 and Canadian UL Recognition. Completely Solid-State with No Moving Parts: SINPAC® Switches have no physical constraints to affect their operation. No wearing parts mean high cycling, no arcing contact, Low warranty. Silent Operation: No switch noise. Operating Temperature: -40 ºC to 65 ºC (-40 ºF to 149ºF) [for operation between 65 ºC and 85 ºC (149 ºF and 185 ºF). consult factory] Operating Voltage: 115 VAC SINPAC® Switch 90-130 VAC. For dual voltage motor equipped with center-tapped mam winding: 90-130 VAC or 180-265 VAC.
Specifications List Price
0.0 USD

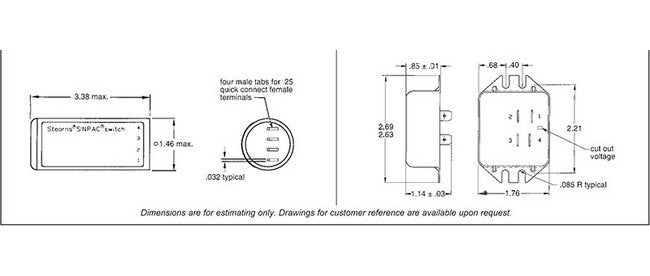

Specifications Package Style
12 | 19
Specifications Part Number
4-7-71040-12-UA1 | 4-7-71040-12-UB1 | 4-7-71040-19-UA1 | 4-7-71040-19-UB1
Specifications Start Circuit Voltage
115 V
Specifications Switch Rating Permissible Max Start Capacitor Cur
40 A

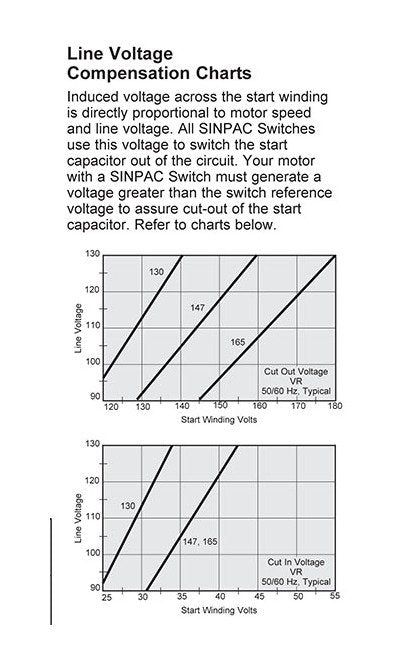

Specifications Cut In Voltage
30 V | 37 V
Specifications Cut Out Voltage
130 V | 147 V
Specifications Full Load Motor Current Rating 115230 Vol
20/10 A
Specifications Full Load Motor Current Rating 115 Volts
20 A
Specifications Maximum Motor
2 hp
