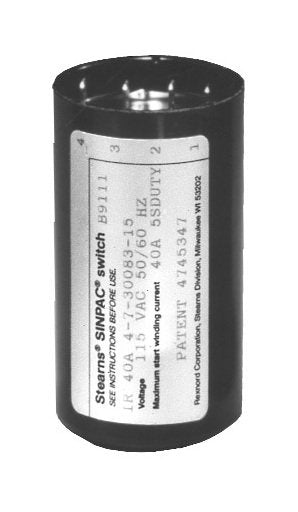

SINPAC IR-40-165 Instant Reverse Switch for Motors
SINPAC IR-40-165 Instant Reverse Switch for Motors
SKU:MOT-f605cc
Transform reversible motors into instant reversing motors seamlessly with SINPAC IR-40-165. UL/CSA certified, solid-state technology for reliable performance.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
SINPAC IR-40-165 Instant Reverse Switch for Motors
$49.99
Quantity: 1
Claim Your Seller Account
SINPAC IR-40-165 Instant Reverse Switch for Motors
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SINPAC IR-40-165 Instant Reverse Switch is a cutting-edge solution for transforming reversible capacitor start motors into instant reversing motors with no time delay. Designed for bidirectional motors, this switch provides seamless direction changes without requiring external reversing components. With UL recognition and CSA certification, this solid-state switch ensures high cycling durability, silent operation, and a wide operating temperature range. It features a start winding voltage of 115V, a switch rating of 25A, and a kit part number 4-7-51025-15-U01. Upgrade your motor systems with the SINPAC IR-40-165 for reliable, instant reversibility.
Product Specifications
Additional Features Additional Features
UL recognition and CSA certification. Completely solid-state with no moving parts. SINPAC Switches have no physical constraints to affect their operation. No wearing parts mean high cycling, no arcing contact. Low warranty Silent operation - no switch noise Operating Temperature: -40°C to 65 °C (-40 °F to 149°F) [for operation between 65°C and 85°C (149°F and 185°F), consult factory.] Operating Voltage: 115 Vac SINPAC Switch: 90-130 Vac. For dual voltage motor equipped with center-tapped main winding: 90-130 Vac or 180-265 Vac.
Specifications Cut In Voltage
37 V
Specifications Cut Out Voltage
165 V
Specifications Kit Part Number
4-7-51025-15-U01
Specifications List Price
0.0 USD
Specifications Manufacturer
Stearns® SINPAC®
Specifications Package Style
15
Specifications Start Winding Voltage
115 V
Specifications Switch Rating And Permissible Maximum Start Windi
25 A
Specifications Full Load Motor Nameplate Current Rating
6 A
Specifications Maximum Motor Hp
0.5
